NNU4924M.P51 W33 RICH 120x165x45

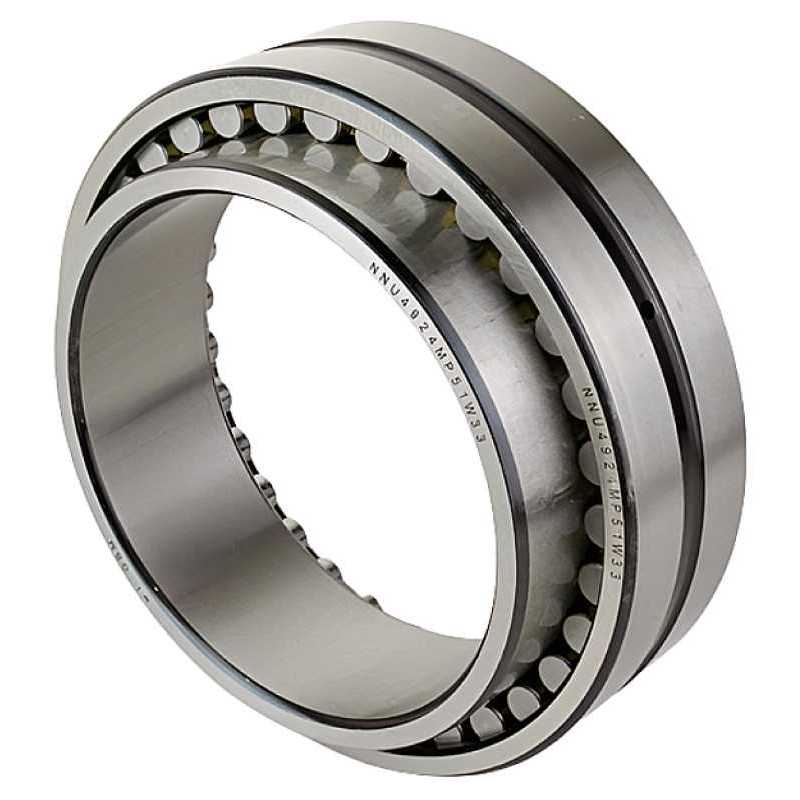

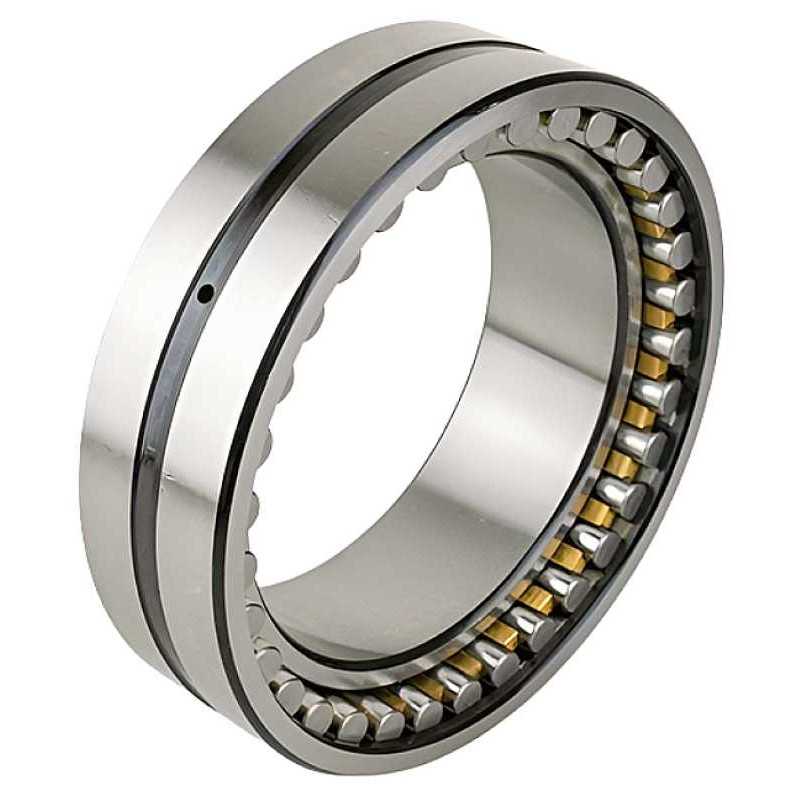

The NNU4924M.P51 W33 RICH Double Row Cylindrical Roller Bearing (120 x 165 x 45 mm) features **P5 precision**, **C1 clearance**, and a **brass cage** for maximum radial rigidity.

RICH
NNU4924M.P51 W33
€71.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

NNU4924M.P51 W33 RICH Double Row Cylindrical Roller Bearing - P5 Precision C1 Clearance - 120 x 165 x 45 mm

Technical Specifications:

  • Brand: RICH
  • Type: Double Row Cylindrical Roller Bearing (NNU Type)
  • Model: NNU4924M.P51 W33
  • Inner Diameter (d): 120 mm
  • Outer Diameter (D): 165 mm
  • Width (B): 45 mm
  • Dimensions: 120 x 165 x 45 mm
  • Precision: P5 (better than P6)
  • Clearance: C1 (smaller than C2)
  • Cage Material: Brass (M), guided by the rolling elements
  • Sealing: None
  • Weight: 2.864 kg
  • Country of Origin: China

Key Performance Advantages:

  • **Ultra-High Precision (P5):** Engineered for demanding applications requiring superior running accuracy, such as machine tool spindles.
  • **Maximum Stiffness:** Double row design provides exceptional radial rigidity and heavy load support.
  • **Optimized Clearance (C1):** C1 internal clearance ensures high radial stiffness and precision alignment during operation.
  • **High-Speed Capability:** Robust brass cage (M) ensures stable and reliable performance at high rotational speeds.

Transparency Note

The NNU4924M.P51 W33 bearing is manufactured by RICH in China to meet stringent quality and dimensional standards, ensuring reliable performance.

Data sheet

Inner Diameter
120
Outer Diameter
165
Width
45
Weight
2,86
Cage
Brass
Category
Single Row Cylindrical Roller Bearing
