SL014912 RICH 60x85x25

Type: Double Row Roller Bearing
Model: SL014912 RICH
Dimensions: 60 x 85 x 25 mm
Features: Full Complement (No Cage)
Brand: RICH
Origin: China
RICH
SL014912
€16.83
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

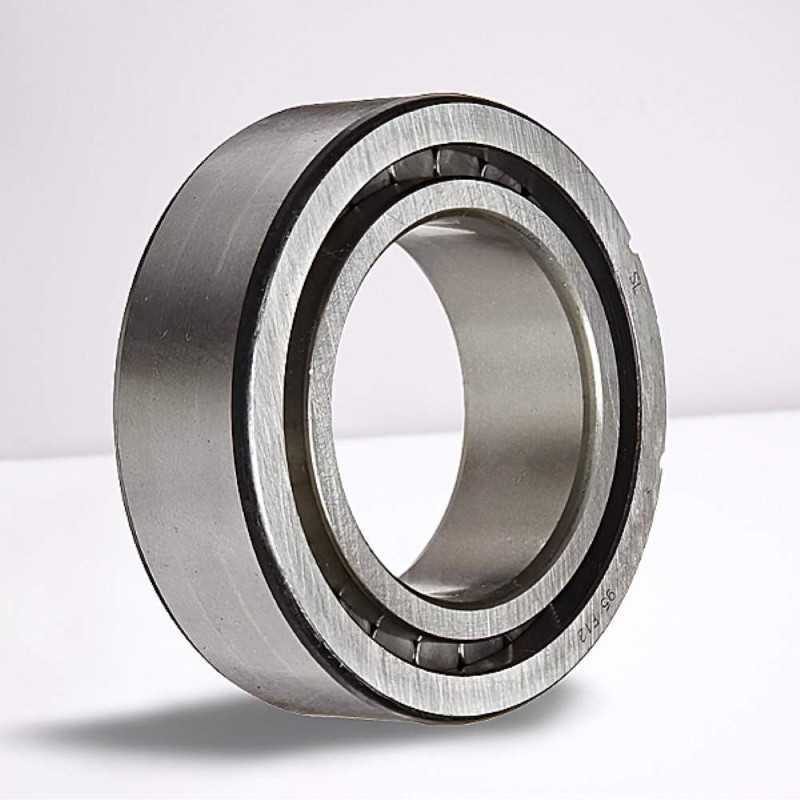

SL014912 RICH Double Row Cylindrical Roller Bearing - 60 x 85 x 25 mm

Technical Specifications:

  • Catalog Code: SL014912 RICH
  • Brand: RICH
  • Type: Double row cylindrical roller bearing (Full Complement)
  • Bore Diameter (d): 60 mm
  • Outer Diameter (D): 85 mm
  • Width (B): 25 mm
  • Cage: None (Full complement)
  • Weight: 0.452 kg
  • Country of Origin: China

Key Performance Advantages:

  • Maximum Radial Load Capacity: The full complement design (SL01 series) eliminates the cage to fill the bearing with two rows of rollers. This provides the highest possible radial load rating for a bearing of these dimensions.
  • Ultra-Compact 49 Series: Part of the extremely light 49 series, this bearing offers a very low cross-section. It is specifically engineered for 60 mm shafts where the housing space is restricted but high power density is required.
  • High Radial Rigidity: The double row configuration increases the contact surface area between rollers and raceways, significantly reducing deflection and ensuring precise shaft guidance under load.
  • Semi-Locating Bearing: The SL01 design features integral flanges on both the inner and outer rings, allowing it to locate the shaft axially in both directions while supporting heavy radial forces.
  • Industrial Efficiency: With a weight of only 0.452 kg, this bearing provides an optimized strength-to-weight ratio, making it ideal for compact gearboxes, planetary gears, and textile machinery.

Transparency Note: This product is manufactured under the RICH brand. The code SL014912 is used for identification purposes.

Data sheet

Inner Diameter
60
Outer Diameter
85
Width
25
Weight
0,452
Roller Rows
Double Row
Clearance
CN (Normal)
