  • SL045008 PP 2NR RICH 40x68x38 SL045008PP2NR RICH

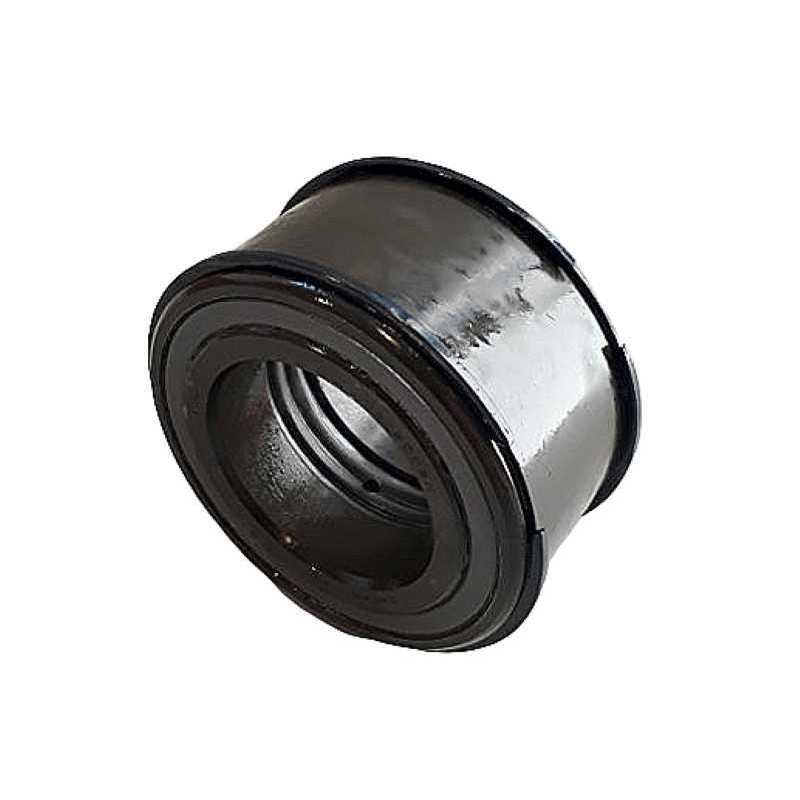

SL045008 PP 2NR RICH 40x68x38

Type: Double Row Full Complement Bearing
Model: SL045008.PP.2NR RICH
Dimensions: 40 x 68 x 38 mm
Features: Sealed (PP), 2 Snap Ring Grooves (2NR)
Brand: RICH
Origin: China
RICH
SL045008PP2NR
€22.88
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

SL045008 PP 2NR RICH Double Row Cylindrical Roller Bearing - 40 x 68 x 38 mm

Technical Specifications:

  • Catalog Code: SL045008.PP.2NR RICH
  • Brand: RICH
  • Type: Double row cylindrical roller bearing (Full Complement)
  • Bore Diameter (d): 40 mm
  • Outer Diameter (D): 68 mm
  • Width (B): 38 mm
  • Cage: None (Full complement)
  • Sealing: Double-sided rubber contact seal (PP)
  • Grooves: Two snap ring grooves on the outer ring (2NR)
  • Weight: 0.538 kg
  • Country of Origin: China

Key Performance Advantages:

  • Maximum Radial Load Capacity: The full complement design (SL04 series) eliminates the cage to fill the bearing with the highest possible number of rollers. This provides the load ratings necessary for heavy-duty hoisting and lifting equipment.
  • 2NR Dual Groove Configuration: Equipped with two snap ring grooves on the outer ring, this bearing allows for precise and simple axial location within a sheave, eliminating the need for complex housing shoulders.
  • Integrated Protection: The double-sided contact rubber seals (PP) protect the internal raceways from moisture, grit, and dust, ensuring long-term reliability in harsh outdoor industrial environments.
  • Compact High-Strength Design: With a 38 mm width for a 40 mm bore, the double-row layout provides exceptional stability against tilting moments, ensuring smooth rotation in compact pulley assemblies.
  • Ready-to-Use Solution: Pre-greased and sealed for life under normal operating conditions, the SL045008.PP.2NR RICH reduces maintenance intervals and simplifies the installation process for mobile cranes and winches.

Transparency Note: This product is manufactured under the RICH brand. The code SL045008.PP.2NR is used for identification purposes.

Data sheet

Inner Diameter
40
Outer Diameter
68
Width
38
Weight
0,52
Roller Rows
Double Row
Category
Double Row Cylindrical Roller Bearing
