  • SL024932 A C3 RICH 160x220x60 SL024932-A RICH

SL024932 A C3 RICH 160x220x60

Type: Double Row Full Complement Bearing
Model: SL024932 A C3 RICH
Dimensions: 160 x 220 x 60 mm
Features: No Cage (High Load), C3 Clearance
Brand: RICH
Origin: China
RICH
SL024932-A
€69.96
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

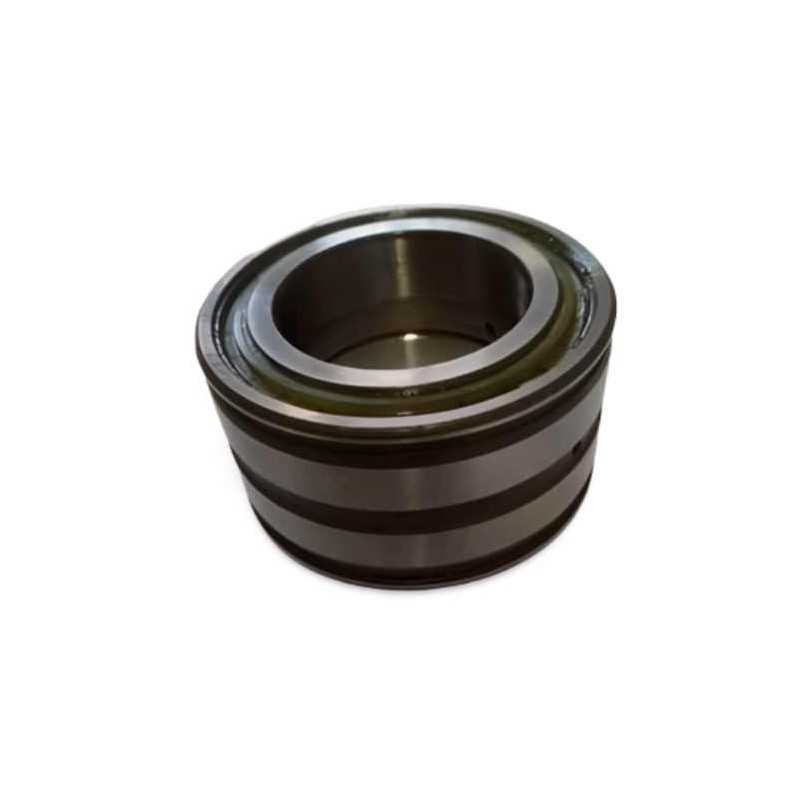

SL024932 A C3 RICH Double Row Cylindrical Roller Bearing - 160 x 220 x 60 mm

Technical Specifications:

  • Catalog Code: SL024932 A C3 RICH
  • Brand: RICH
  • Type: Double row cylindrical roller bearing (Full Complement)
  • Bore Diameter (d): 160 mm
  • Outer Diameter (D): 220 mm
  • Width (B): 60 mm
  • Cage: None (Full complement)
  • Clearance: C3 (Greater than normal)
  • Weight: 7.076 kg
  • Country of Origin: China

Key Performance Advantages:

  • Maximum Radial Load Capacity: The SL02 series full complement design eliminates the cage, allowing the internal space to be filled with the maximum number of rollers. This provides the highest possible load ratings for 160 mm shaft assemblies.
  • C3 Internal Clearance: The increased C3 clearance is specifically designed to accommodate thermal expansion of the rolling elements and rings during continuous heavy-duty operation, preventing internal stress and overheating.
  • Non-Locating Bearing Flexibility: This model allows for axial displacement of the shaft in both directions, making it a perfect non-locating bearing for long shafts subject to thermal growth.
  • High Power Density: As part of the 49 series, this bearing offers a slim cross-section with a wide profile (60 mm). This allows for exceptional radial rigidity and load support in compact housing environments.
  • Robust 7 kg Industrial Build: The heavy-duty steel construction ensures uniform load distribution and long-term dimensional stability in mining, paper manufacturing, and heavy energy equipment.

Transparency Note: This product is manufactured under the RICH brand. The code SL024932 A C3 is used for identification purposes.

Data sheet

Inner Diameter
160
Outer Diameter
220
Width
60
Weight
7,076
Roller Rows
Double Row
Clearance
C3 (Greater than Normal)
