NJ 322 E M C3 RICH 110x240x50

Type: Cylindrical Roller Bearing (NJ Type)
Model: NJ 322 E M C3 RICH
Dimensions: 110 x 240 x 50 mm
Features: Reinforced (E), Brass Cage (M), C3 Clearance
Brand: RICH
Origin: China
RICH
NJ322
€88.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

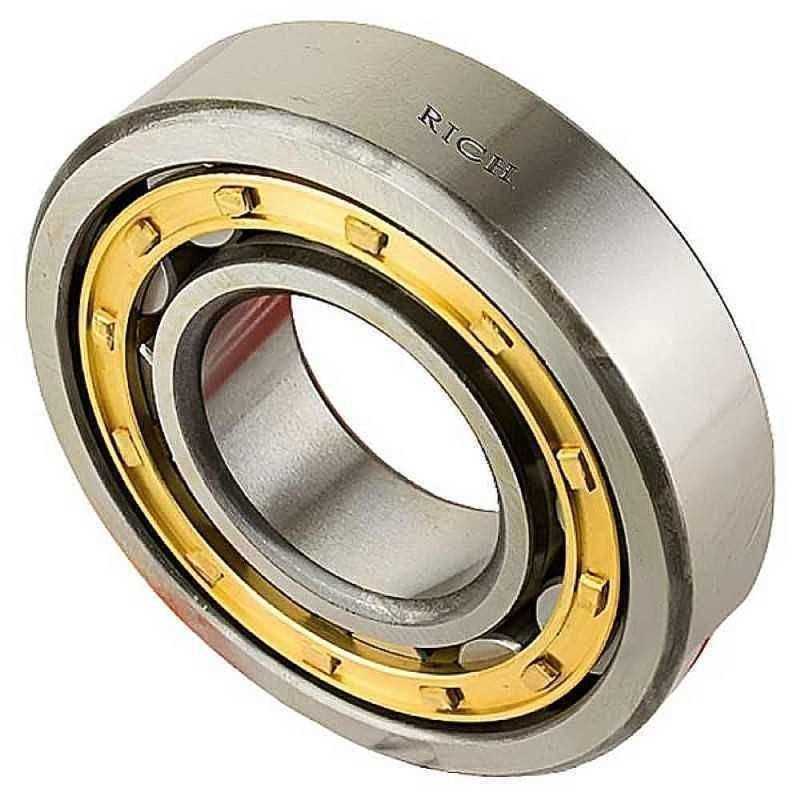

NJ 322 E M C3 RICH Single Row Cylindrical Roller Bearing - 110 x 240 x 50 mm

Technical Specifications:

  • Catalog Code: NJ 322 E M C3 RICH
  • Brand: RICH
  • Type: Single row cylindrical roller bearing (NJ type)
  • Bore Diameter (d): 110 mm
  • Outer Diameter (D): 240 mm
  • Width (B): 50 mm
  • Cage: Machined Brass (M), guided by the rolling elements
  • Reinforced Execution: Yes (E-design)
  • Clearance: C3 (Greater than normal)
  • Weight: 11.351 kg
  • Country of Origin: China

Key Performance Advantages:

  • Reinforced E-Design Capacity: The "E" execution optimizes the internal geometry by utilizing larger and more rollers. This significantly increases the radial load-carrying capacity, making it essential for heavy-duty applications like stone crushers and large gearboxes.
  • C3 High-Temperature Clearance: The C3 internal clearance is larger than normal, which accommodates thermal expansion of the rollers and rings. This prevents internal stress and seizing in high-speed or high-temperature operations.
  • Heavy-Duty Machined Brass Cage (M): The brass cage provides superior mechanical strength and excellent sliding properties. Being guided by the rolling elements, it ensures smooth operation and high reliability even in high-vibration environments.
  • One-Directional Axial Location: As an NJ-type bearing, it can support axial displacement in one direction and locate the shaft axially in the other, providing necessary stability for complex rotating assemblies.
  • Robust 11 kg Industrial Build: With a weight of over 11 kg, this bearing is constructed from high-grade steel for maximum dimensional stability and a long service life under continuous, intense radial pressure.

Transparency Note: This product is manufactured under the RICH brand. The code NJ 322 E M C3 is used for identification purposes.

Data sheet

Inner Diameter
110
Outer Diameter
240
Width
50
Roller Rows
Single Row
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Single Row Cylindrical Roller Bearing
