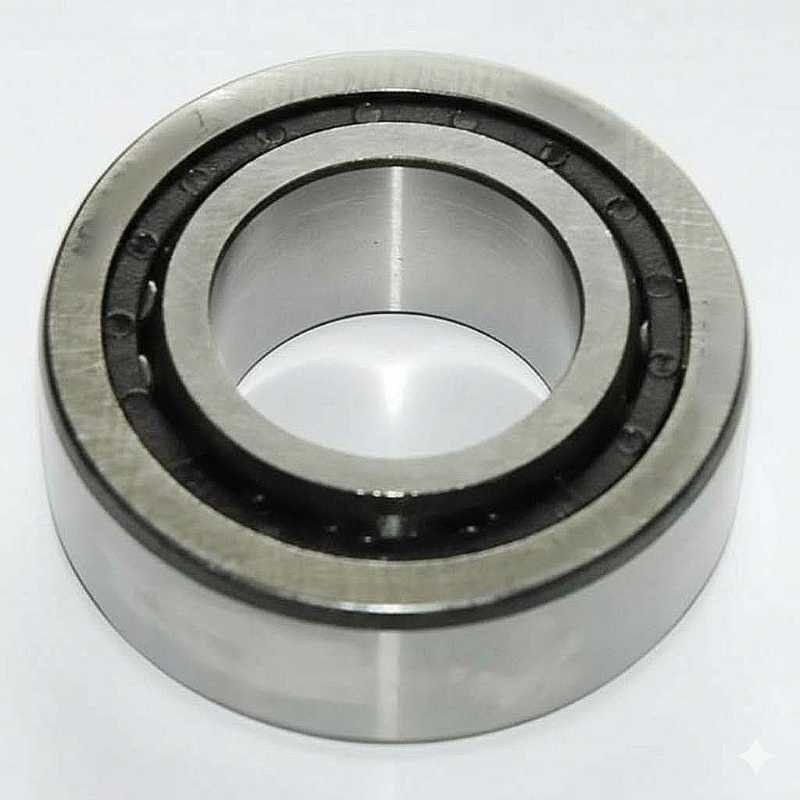

AP-608-270 RICH Single Row Cylindrical Roller Bearing - 30.2 x 59 x 22 mm
OE References:
Technical Specifications:
- Product Type: Single Row Cylindrical Roller Bearing
- Model Designation: AP-608-270
- Brand: RICH
- Bore Diameter (d): 30.2 mm
- Outer Diameter (D): 59 mm
- Inner Ring Width (B): 22 mm
- Outer Ring Width (C): 20 mm
- Cage Material: Polyamide
- Sealing: None (Open)
- Weight: 0.255 kg
- Country of Origin: China
The AP-608-270 RICH is a precision-engineered single row cylindrical roller bearing designed specifically for high-load automotive transmission applications. With dimensions of 30.2 mm bore, 59 mm outer diameter, and 22 mm width, this bearing is optimized to handle high radial forces while maintaining exceptional structural rigidity. The use of cylindrical rollers allows for a larger contact area compared to ball bearings, providing superior load distribution and resistance to impact.
This model is equipped with a high-performance polyamide cage, which offers several advantages including reduced weight, lower frictional heat, and quieter operation at high rotational speeds. The open design is intended for use in oil-lubricated environments, such as gearboxes, where constant lubrication is provided by the system. The AP-608-270 RICH is a direct replacement for VW 0A5311372AB, ensuring a perfect fit and reliable performance for specialized Volkswagen group transmission repairs.
Key Performance Advantages:
- High Radial Load Capacity: Cylindrical roller design maximizes the contact surface for heavy-duty support.
- Polyamide Cage: Minimizes friction and noise while enhancing performance in high-speed applications.
- Automotive Precision: Engineered to meet the exact tolerances required for VW transmission systems.
- RICH Durability: Manufactured with premium materials to ensure long-term reliability and resistance to wear.
Transparency Note: This component is manufactured under the RICH brand. The listed dimensions and technical data are used for identification purposes and do not imply affiliation with other manufacturers.
