NF310 C3 RICH 50x110x27

NF310 C3 RICH – Cylindrical Roller Bearing 50x110x27 mm

Technical Specifications

• Type: Single row cylindrical roller bearing (NF design)
• Model: NF310 C3
• Inner Diameter (d): 50 mm
• Outer Diameter (D): 110 mm
• Width (B): 27 mm
• Internal Clearance: C3
• Cage Material: Steel
• Material: Bearing steel
• Weight: 1.14 kg
• Brand: RICH
• Origin: China

Product Overview

The NF310 C3 cylindrical roller bearing is designed for high radial load capacity and controlled axial displacement in one direction. It is commonly used in applications where shaft expansion due to heat must be compensated.

Thanks to its C3 internal clearance, this bearing can operate reliably in high-speed and high-temperature conditions, reducing internal stress and improving service life.

What is an NF Cylindrical Roller Bearing?

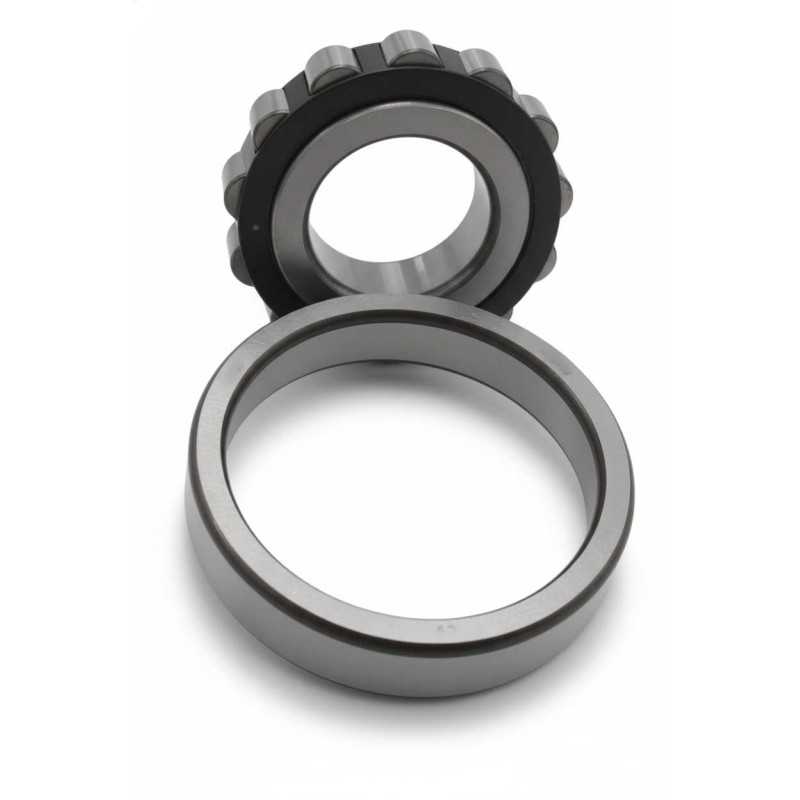

An NF-type cylindrical roller bearing features two ribs on the inner ring and one rib on the outer ring. This design allows axial movement of the shaft in one direction while maintaining high rigidity and load capacity.

When to Use C3 Clearance

C3 clearance is recommended for applications involving high speeds or temperature variations, where thermal expansion could otherwise cause internal preload.

Typical Applications

• Electric motors
• Gearboxes
• Industrial machinery
• Pumps and compressors
• Heavy-duty rotating equipment

Key Benefits

• High radial load capacity
• Axial displacement capability (NF design)
• Suitable for high-speed operation
• Reduced friction and heat generation
• Extended service life

Transparency Note: This product is manufactured under the RICH brand. Technical references are provided for identification purposes only.
