F-554430.02 RICH 40x68x21

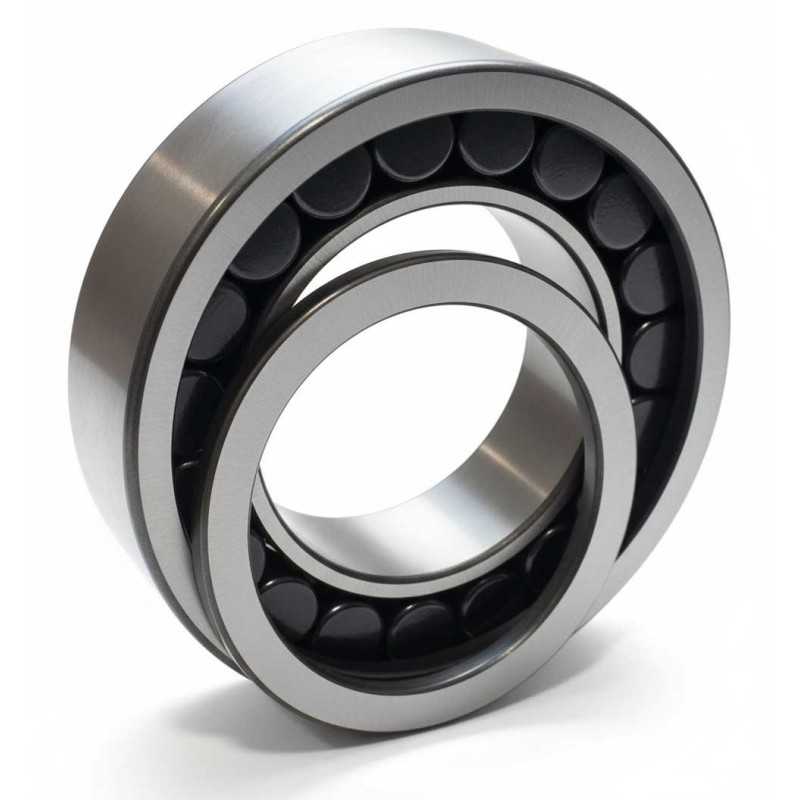

F-554430.02 RICH – Single Row Cylindrical Roller Bearing – 40 x 68 x 21 mm

Technical Specifications:

• Type: Single row cylindrical roller bearing
• Brand: RICH
• Model Designation: F-554430.02
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 68 mm
• Width (B): 21 mm
• Cage Material: None (Full complement)
• Sealing: Open
• Weight: 0.323 kg
• Country of Origin: China

Product Details:

• Components: Consists of a solid inner ring, a machined outer ring with integral containment flanges, and a full complement single row of high-precision cylindrical rolling elements.
• Internal Geometry: Engineered as a cageless, full complement configuration to maximize the total number of load-bearing rollers within the internal envelope, delivering exceptionally high radial load-carrying capabilities and rigid structural stability.
• Dimensional Set: Standardized metric configuration providing a 40 mm inner bore diameter, a 68 mm outside diameter, and a 21 mm structural profile width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
