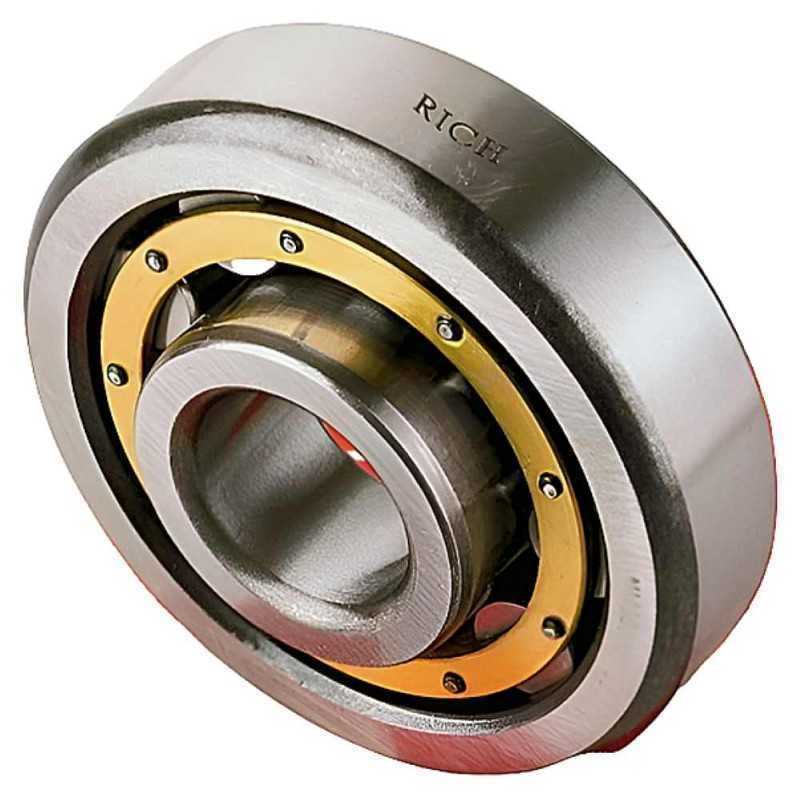

NU220EM C3 RICH 100x180x34

RICH NU220EM C3 – 100x180x34 mm – Single Row Cylindrical Roller Bearing

Technical Specifications:

• Type: Single Row Cylindrical Roller Bearing
• Brand: RICH
• Model Designation: NU220EM C3 RICH
• Inner Diameter (d): 100 mm
• Outer Diameter (D): 180 mm
• Width (B): 34 mm
• Weight: 3.78 kg
• Cage: Brass, Guided by Rolling Elements
• Clearance: C3 - Greater than Normal
• Reinforced Execution: Yes
• Country of Origin: China

The RICH NU220EM C3 is a high-performance single row cylindrical roller bearing with reinforced execution, specifically engineered for demanding applications requiring exceptional radial load capacity, high speeds, and the accommodation of axial displacement. This bearing exemplifies RICH's commitment to delivering robust and versatile industrial components.

With precise dimensions of 100 mm inner diameter, 180 mm outer diameter, and 34 mm width, the NU220EM C3 RICH is optimized for heavy radial loads due to its extensive contact area between the rollers and raceways. The NU designation indicates that the bearing features two integral flanges on the outer ring and a smooth inner ring, allowing for axial movement between the shaft and housing within the bearing itself. The reinforced execution ensures enhanced strength and rigidity, making it particularly well-suited for operations subject to heavy shock loads or vibrations. It features a robust brass cage guided by the rolling elements, which provides excellent stability, reduced friction, and superior performance at higher speeds and temperatures. The C3 clearance (greater than normal) allows for thermal expansion and misalignment, crucial in applications with significant temperature variations or mounting inaccuracies. Manufactured in China, this RICH cylindrical roller bearing provides dependable performance and offers a high-quality solution for various industrial machinery and equipment.

Key Performance Advantages:

• High Radial Load Capacity: Cylindrical rollers provide excellent support for heavy radial loads.
• Axial Displacement Capability: NU type allows for axial movement within the bearing, accommodating thermal expansion.
• Reinforced Execution: Enhanced durability and rigidity for applications with heavy shock loads or vibrations.
• Brass Cage (Roller Guided): Ensures high-speed capability, reduced friction, and excellent stability.
• C3 Clearance: Accommodates thermal expansion and minor misalignment for improved operational flexibility.
• Precision Engineering: Manufactured to exact specifications for dependable operation and seamless integration.
• RICH Quality: Produced in China, ensuring consistent quality and dependable performance.
