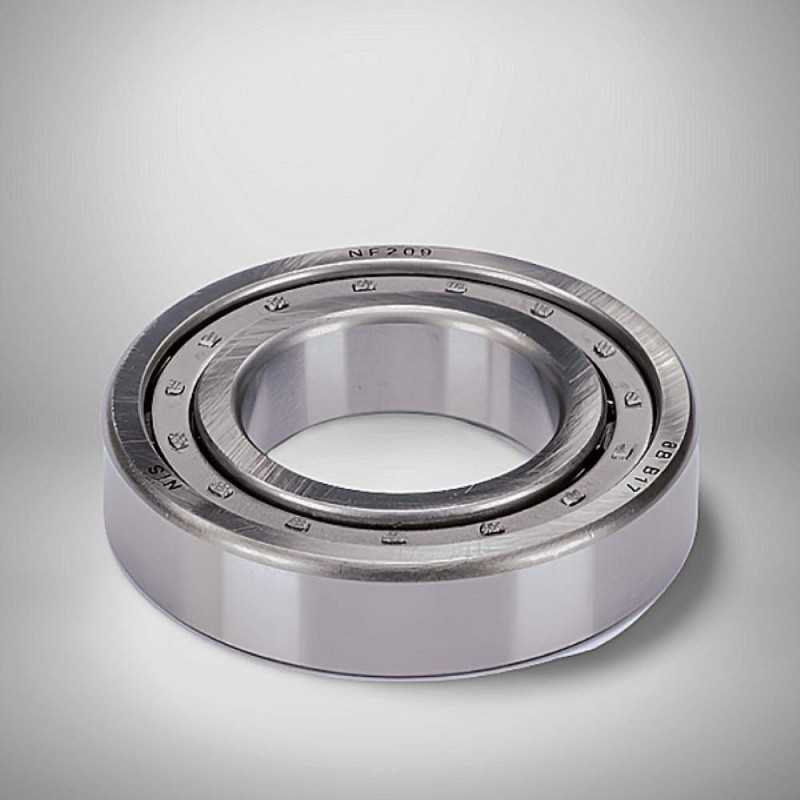

NF209E RICH Single Row Cylindrical Roller Bearing – 45 x 85 x 19 mm – High Capacity, Reinforced Design

Engineered for high radial loads and moderate to high speeds, offering robust performance in challenging industrial applications. The NF209E RICH single row cylindrical roller bearing is designed for superior durability and efficiency. With precise dimensions of 45 mm inner diameter, 85 mm outer diameter, and a 19 mm width, this bearing is built for demanding operational environments.

This RICH cylindrical roller bearing features a robust steel cage and is a reinforced execution, indicating enhanced load-carrying capabilities and extended service life. The "NF" designation means that the outer ring has two integral flanges and the inner ring has one integral flange. This configuration allows the bearing to accommodate axial displacement in one direction, while providing axial guidance in the other.

Manufactured in China by RICH, this single row cylindrical roller bearing weighs 0.48 kg. Its high radial load capacity, reinforced design, and ability to handle axial displacement in one direction make it an excellent choice for electric motors, gearboxes, pumps, and other heavy-duty machinery requiring dependable and long-lasting performance.

Technical Specifications:

  • Type: Single Row Cylindrical Roller Bearing
  • Model: NF209E
  • Brand: RICH
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 85 mm
  • Width (B): 19 mm
  • Cage: Steel
  • Reinforced Execution: Yes
  • Weight: 0.48 kg
  • Country of Origin: China

Key Performance Advantages:

  • High Radial Load Capacity: Cylindrical rollers provide a large contact area, enabling the bearing to support substantial radial forces.
  • Reinforced Design: Enhanced construction for increased durability and extended operational life under demanding conditions.
  • Axial Displacement Accommodation: The "NF" configuration allows for axial movement in one direction while providing guidance in the other.
  • Robust Construction: Features a durable steel cage for reliable performance and precision.
  • Versatile Application: Ideal for industrial machinery, including electric motors, gearboxes, and pumps.
  • RICH Quality Assurance: Produced in China to high manufacturing standards, guaranteeing dependable performance.

Data sheet

Inner Diameter
45
Outer Diameter
85
Width
19
Weight
0,48
Roller Rows
Single Row
Category
Single Row Cylindrical Roller Bearing
