NUPK 308 RICH 40x90x23

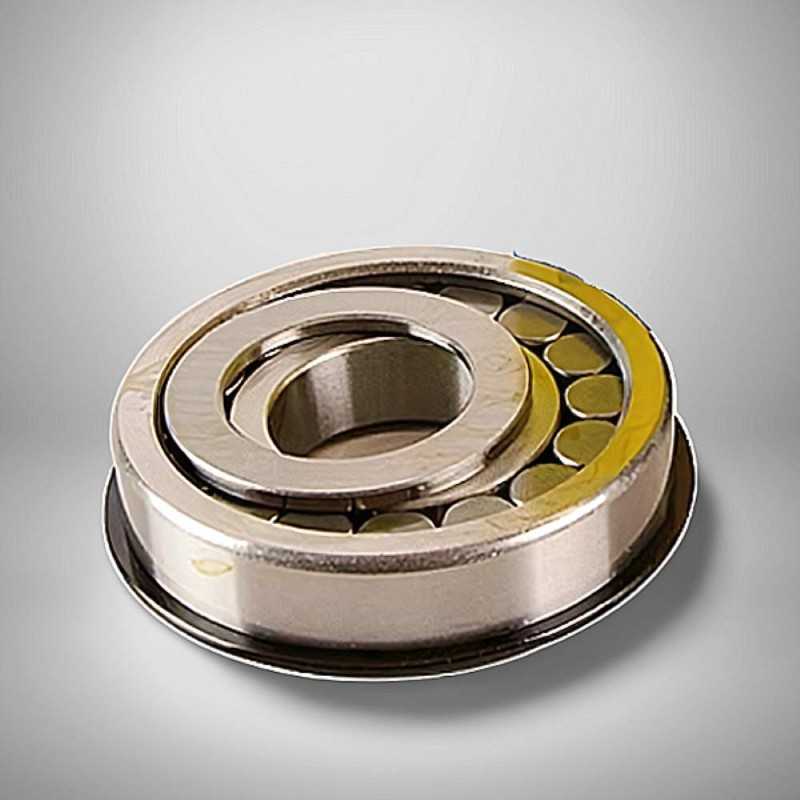

NUPK 308 RICH Single Row Cylindrical Roller Bearing – 40 x 90 x 23 mm – Full Complement with Snap Ring Groove

Engineered for exceptionally high radial loads and robust performance in demanding industrial applications, the NUPK 308 RICH single row cylindrical roller bearing is a full complement design, maximizing load capacity by incorporating the maximum possible number of rollers. With precise dimensions of 40 mm inner diameter, 90 mm outer diameter, and a 23 mm width, this bearing is built for critical operational environments.

This RICH cylindrical roller bearing features a full complement (cageless) design, allowing it to withstand significantly higher radial loads than caged counterparts. The "NUPK" designation signifies that the outer ring has two integral flanges and the inner ring has one integral flange, allowing for axial displacement in one direction while providing axial guidance in the other. Crucially, the outer ring is equipped with a groove and snap ring, facilitating axial location within the housing and simplifying installation. Manufactured with CN (normal) clearance, it ensures consistent and smooth operation under standard loads.

Manufactured by RICH, this single row cylindrical roller bearing weighs 0.752 kg. Its superior radial load capacity, snap ring for easy mounting, and robust construction make it an excellent choice for heavy machinery, gearboxes, and other applications where maximum load support and reliable performance are paramount.

Technical Specifications:

• Type: Single Row Cylindrical Roller Bearing
• Model: NUPK 308
• Brand: RICH
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 90 mm
• Width (B): 23 mm
• Cage: None (Full Complement)
• Clearance: CN (Normal Clearance)
• Groove on Outer Ring: Yes, with snap ring
• Country of Origin: China

Key Performance Advantages:

• Exceptional Radial Load Capacity: Its full complement design utilizes the maximum number of rollers for superior load support.
• Axial Location with Snap Ring: The outer ring groove and snap ring enable precise axial positioning, simplifying mounting.
• Robust Construction: This bearing is built for reliable performance in heavy-duty and high-stress applications.
• Axial Displacement Accommodation: The "NUPK" configuration allows for axial movement in one direction while providing guidance in the other.
• Consistent Operation: CN (normal) clearance ensures smooth and stable rotation under standard conditions.
• Versatile Application: Ideal for heavy industrial machinery, gearboxes, and other critical equipment.
• RICH Quality Assurance: Produced in China to high manufacturing standards, guaranteeing dependable performance.
