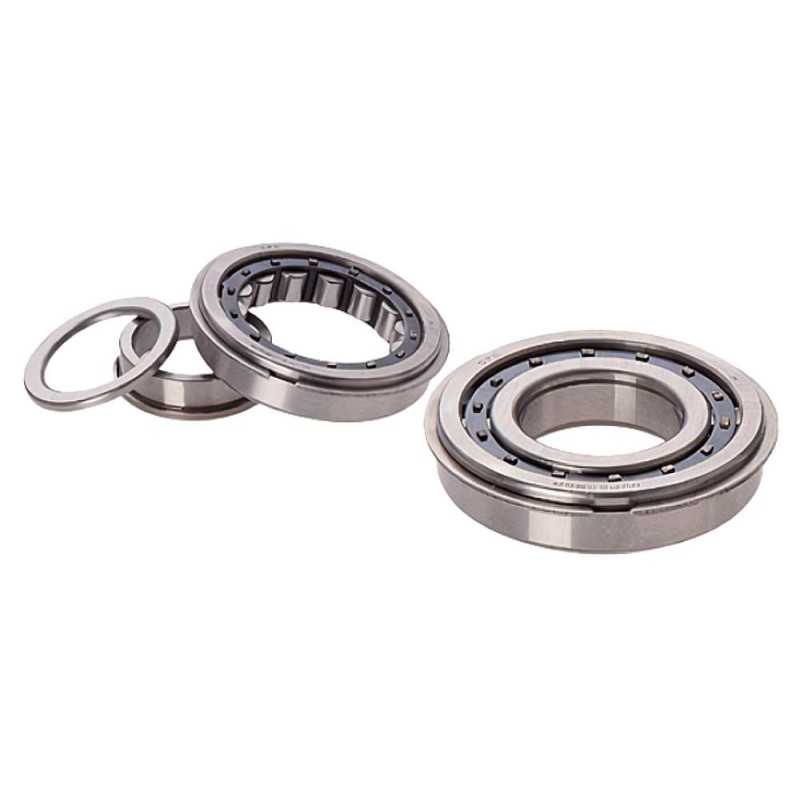

NUP 309 NR C3 RICH 45x100x25

RICH NUP309 NR C3 – 45x100x25 mm – Single Row Cylindrical Roller Bearing with Snap Ring Groove

Technical Specifications:

• Type: Single Row Cylindrical Roller Bearing
• Brand: RICH
• Model Designation: NUP309 NR C3 RICH
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Width (B): 25 mm
• Weight: 0.895 kg
• Clearance: C3 - Greater than Normal
• Groove on Outer Ring: Groove with Snap Ring (Rowek z pierścieniem osadczym)
• Country of Origin: China

The RICH NUP309 NR C3 is a high-performance single row cylindrical roller bearing designed for applications requiring exceptional radial load capacity, precision, and axial location. This bearing stands out with its integrated snap ring groove on the outer ring, simplifying mounting and axial retention. This bearing exemplifies RICH's commitment to delivering robust and versatile industrial components.

With precise dimensions of 45 mm inner diameter, 100 mm outer diameter, and 25 mm width, the NUP309 NR C3 RICH is optimized for heavy radial loads due to its extensive contact area between the rollers and raceways. The NUP designation indicates that the bearing features two integral flanges on the outer ring and one on the inner ring, allowing it to provide axial location in both directions. The "NR" suffix signifies the presence of a snap ring groove on the outer ring, facilitating precise axial positioning within its housing without the need for additional machining. The C3 clearance (greater than normal) allows for thermal expansion and misalignment, crucial in applications with significant temperature variations or mounting inaccuracies. Manufactured in China, this RICH cylindrical roller bearing provides dependable performance and offers a high-quality solution for various industrial machinery and equipment.

Key Performance Advantages:

• High Radial Load Capacity: Cylindrical rollers provide excellent support for heavy radial loads.
• Axial Locating Capability (NUP Type): Provides axial location in both directions.
• Integrated Snap Ring Groove (NR): Simplifies mounting and axial retention in the housing.
• C3 Clearance: Accommodates thermal expansion and minor misalignment for improved operational flexibility.
• Precision Engineering: Manufactured to exact specifications for dependable operation and seamless integration.
• RICH Quality: Produced in China, ensuring consistent quality and dependable performance.
