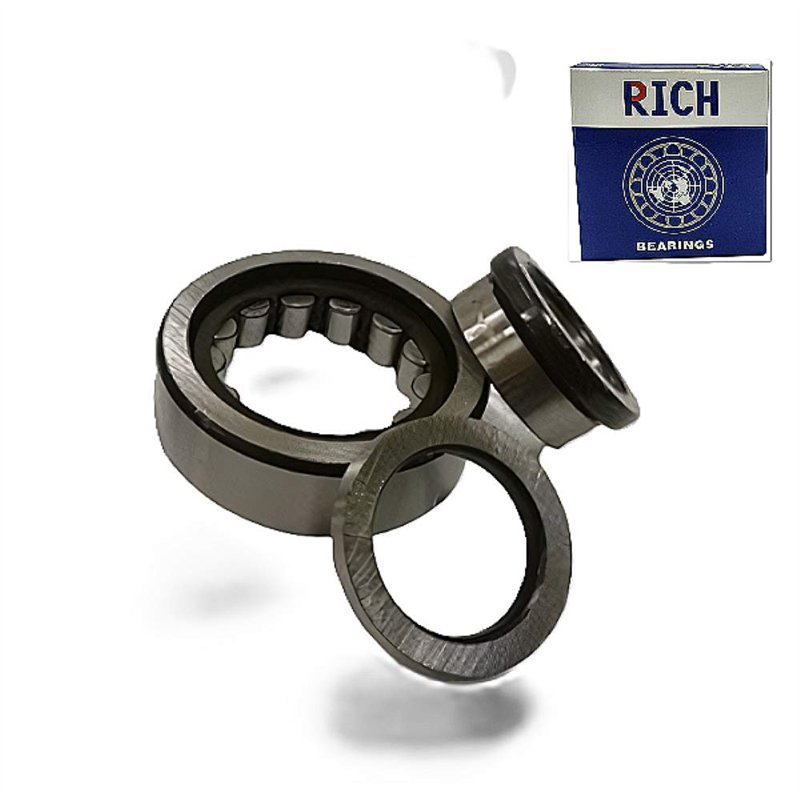

NUP314 RICH Single Row Cylindrical Roller Bearing - 70 x 150 x 35 mm for Heavy Radial Loads
The NUP314 RICH is a high-quality single row cylindrical roller bearing, meticulously manufactured by RICH in China. This bearing is engineered to accommodate substantial radial loads and is particularly suitable for applications where axial displacement of the shaft relative to the housing is required in one direction. Its precise dimensions of 70 mm bore, 150 mm outer diameter, and 35 mm width make it an extremely robust choice for demanding industrial machinery.
This RICH cylindrical roller bearing features a durable steel cage, ensuring excellent stability and consistent performance even in challenging operating conditions. The NUP configuration provides two integral flanges on the outer ring and one integral flange on the inner ring, facilitating precise axial location in one direction.
Weighing 2.85 kg, this durable component from RICH provides reliable and efficient performance for heavy-duty applications requiring strong radial support and precise axial guidance.
Key Specifications:
- Type: Single Row Cylindrical Roller Bearing
- Brand: RICH
- Model: NUP314 RICH
- Dimensions: 70 mm bore x 150 mm outer diameter x 35 mm width
- Weight: 2.85 kg
- Cage: Steel
- Country of Origin: China
Key Advantages:
- High Radial Load Capacity: Designed to withstand very high radial forces.
- Axial Displacement Accommodation: Allows for relative axial movement between shaft and housing in one direction.
- Durable Construction: Features a robust steel cage for extended reliability and stable operation.
- RICH Quality: Manufactured by RICH in China, ensuring consistent quality and dependable performance.
Data sheet
Inner Diameter
70
Outer Diameter
150
Width
35
Weight
2,87
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Cylindrical Roller Bearing
