NUP 308 RICH 40x90x23
Rating:
(0)
EUR €
- EUR €
- USD $

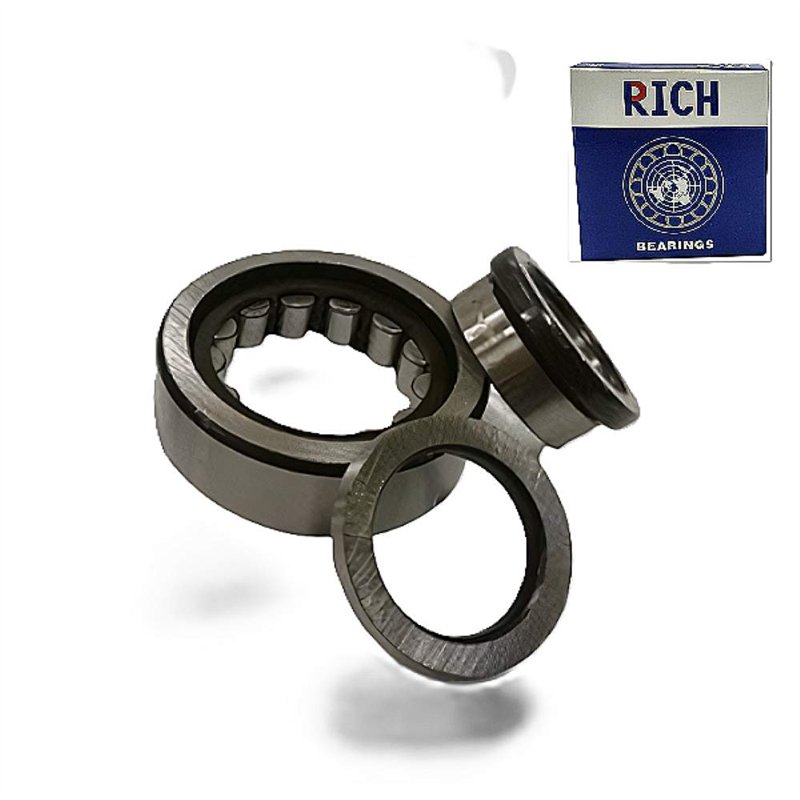

NUP308 RICH Single Row Cylindrical Roller Bearing - 40 x 90 x 23 mm for High Radial Loads
The NUP308 RICH is a high-quality single row cylindrical roller bearing, meticulously manufactured by RICH in China. This bearing is engineered to accommodate significant radial loads and is particularly suitable for applications where axial displacement of the shaft relative to the housing is required in one direction. Its precise dimensions of 40 mm bore, 90 mm outer diameter, and 23 mm width make it a versatile choice for various industrial applications.
This RICH cylindrical roller bearing features a durable steel cage, ensuring excellent stability and consistent performance even in challenging operating conditions. The NUP configuration provides two integral flanges on the outer ring and one integral flange on the inner ring, facilitating precise axial location in one direction.
Weighing 0.688 kg, this durable component from RICH provides reliable and efficient performance for machinery requiring strong radial support and some axial guidance.
Key Specifications:
- Type: Single Row Cylindrical Roller Bearing
- Brand: RICH
- Model: NUP308 RICH
- Dimensions: 40 mm bore x 90 mm outer diameter x 23 mm width
- Weight: 0.688 kg
- Cage: Steel
- Country of Origin: China
Key Advantages:
- High Radial Load Capacity: Designed to withstand significant radial forces.
- Axial Displacement Accommodation: Allows for relative axial movement between shaft and housing in one direction.
- Durable Construction: Features a robust steel cage for extended reliability and stable operation.
- RICH Quality: Manufactured by RICH in China, ensuring consistent quality and dependable performance.
Data sheet
Inner Diameter
40
Outer Diameter
90
Width
23
Weight
0,68
Roller Rows
Single Row
Cage
Steel Cage
Category
Single Row Cylindrical Roller Bearing
