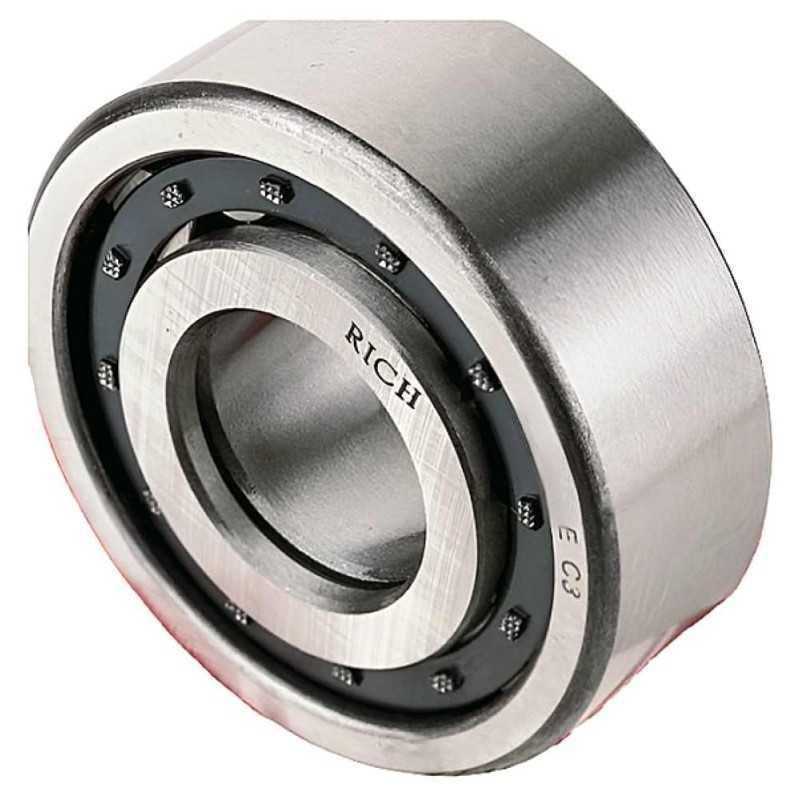

The RICH NUP310E C3 is a single row cylindrical roller bearing (50x110x27 mm) with a steel cage, C3 clearance, and reinforced execution. Manufactured by RICH in China.
The RICH NUP310E C3 is a high-performance single row cylindrical roller bearing designed for applications that require very high radial load capacity, high-speed operation, and the ability to accommodate axial displacement. This bearing showcases RICH's commitment to delivering robust and specialized industrial solutions.
With precise dimensions of 50 mm inner diameter, 110 mm outer diameter, and 27 mm width, the NUP310E C3 RICH is ideally suited for various heavy-duty machinery. Its cylindrical rollers provide a modified line contact with the raceways, which helps to distribute the load evenly and reduce stress concentrations, making it highly suitable for applications with significant radial loads. The steel cage ensures precise roller guidance and separation, contributing to smooth operation and extended service life. The C3 clearance (greater than normal) provides additional internal space, allowing for smoother operation at higher temperatures and speeds, and accommodating minor misalignments. Being a reinforced execution, this bearing offers enhanced durability and reliability in challenging environments. The NUP designation indicates that this bearing has two integral flanges on the outer ring and one integral flange on the inner ring, allowing it to provide axial location in one direction. Manufactured in China, this RICH cylindrical roller bearing ensures consistent quality and dependable performance, making it an excellent choice for electric motors, gearboxes, and pumps.
Data sheet
The RICH NUP310E C3 is a single row cylindrical roller bearing (50x110x27 mm) with a steel cage, C3 clearance, and reinforced execution. Manufactured by RICH in China.
