NJ 2308 RICH 40x90x33

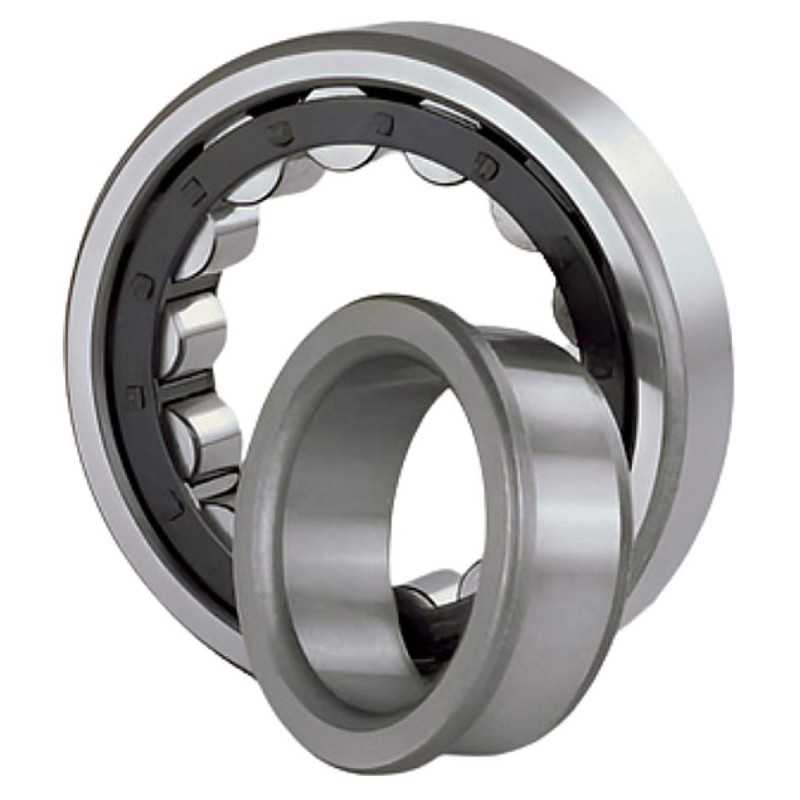

NJ2308 RICH – Single Row Cylindrical Roller Bearing – 40 x 90 x 33 mm

Technical Specifications:

• Type: Single row cylindrical roller bearing
• Brand: RICH
• Model Designation: NJ2308
• Inner Diameter (d): 40 mm
• Outer Diameter (D): 90 mm
• Width (B): 33 mm
• Cage Material: Steel
• Sealing: Open
• Weight: 0.9 kg
• Country of Origin: China

Product Details:

• Components: Consists of an outer ring with two integral permanent flanges, a separate inner ring featuring a single integral flange, a single row of high-precision cylindrical rolling elements, and a rigid pressed steel cage.
• Internal Geometry: Configured as an NJ-style system layout, which allows the inner ring to undergo axial displacement in one direction while providing solid mechanical location and axial load transmission capabilities in the opposite direction under heavy radial operational parameter profiles.
• Dimensional Set: Standardized high-capacity metric 2308-series boundary framework specifying a 40 mm inner bore, a 90 mm outer diameter, and a 33 mm complete section width.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
