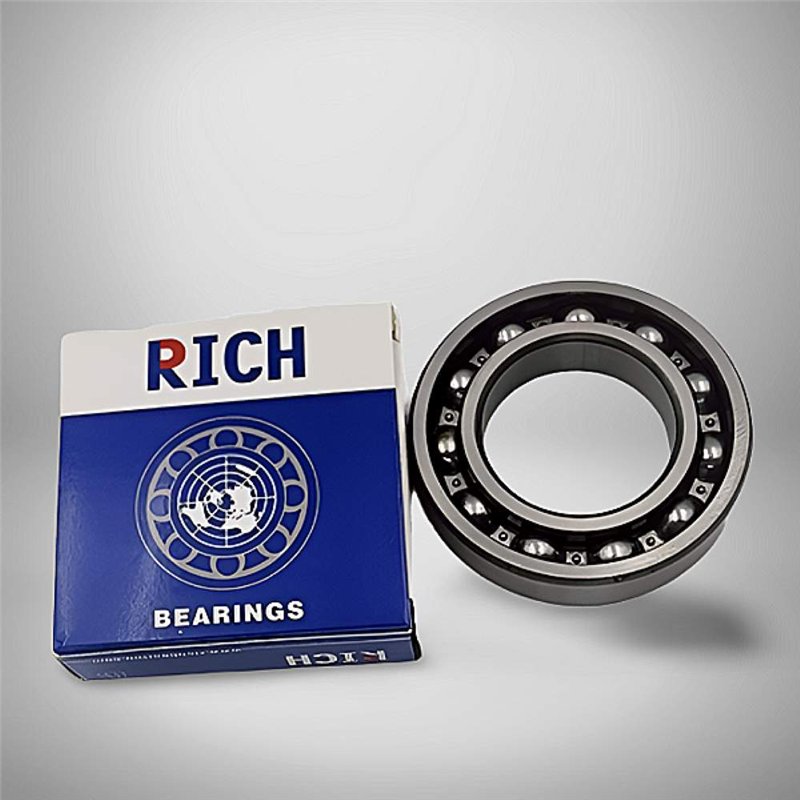

6021/C3 RICH 105x160x26

6021-C3 RICH - Single Row Deep Groove Ball Bearing - 105 x 160 x 26 mm

Technical Specifications:

• Dimensions: 105 x 160 x 26 mm
• Type: Single Row Deep Groove Ball Bearing
• Brand: RICH
• Model Designation: 6021-C3
• Inner Diameter (d): 105 mm
• Outer Diameter (D): 160 mm
• Width (B): 26 mm
• Cage Material: Steel
• Radial Internal Clearance: C3 (Greater than Normal)
• Sealing: None (Open execution)
• Weight: 1.593 kg
• Country of Origin: China

Construction Details:

• Configuration: Single row deep groove ball bearing design comprising an inner ring, an outer ring, and a single row of spherical rolling elements. Structured assembly features an open execution with a precision steel cage guidance layout and an expanded C3 internal radial clearance alignment.
• Dimensional Set: Defined by a 105 mm bore diameter, 160 mm outside diameter, and 26 mm total width profile.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
