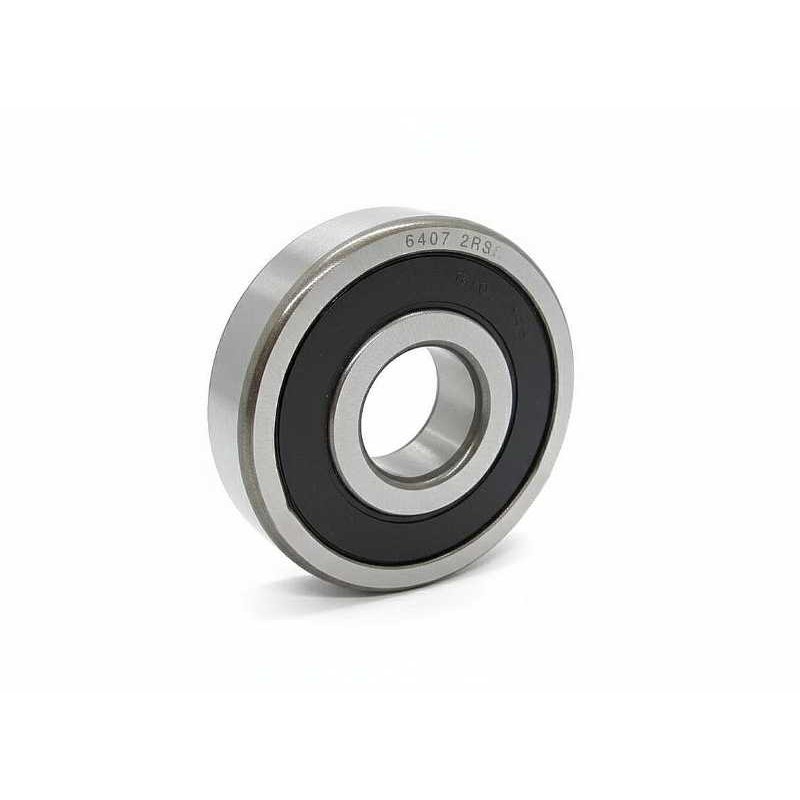

6407 2RS RICH | Single Row Deep Groove Ball Bearing 35 x 100 x 25 mm

Technical Specifications:

• Product Type: Single Row Deep Groove Ball Bearing
• Model Designation: 6407 2RS
• Brand: RICH
• Bore Diameter (d): 35 mm
• Outer Diameter (D): 100 mm
• Width (B): 25 mm
• Internal Clearance: CN (Normal Clearance)
• Sealing: 2RS (Double-sided rubber contact seals)
• Cage Material: Steel
• Weight: 0.93 kg
• Country of Origin: China

The 6407 2RS RICH is a heavy-series single row deep groove ball bearing engineered to provide exceptional radial load capacity. Belonging to the 6400 series, this bearing features significantly thicker rings and larger rolling elements than standard series bearings of the same bore size. With dimensions of 35 mm bore, 100 mm outer diameter, and 25 mm width, it is the ideal choice for applications subjected to extreme radial forces and heavy-duty operational stress.

For maximum protection in challenging environments, this bearing is equipped with double-sided rubber contact seals (2RS). These seals create a highly effective barrier against the ingress of dust, moisture, and debris, ensuring the internal raceways remain clean and the high-quality lubrication is retained. The robust steel cage ensures precise ball guidance and structural stability even under high-torque conditions.

The 6407 2RS RICH is manufactured to exacting tolerances, offering a high-strength solution for industrial machinery, heavy-duty electric motors, and transmission systems where durability and long service life are paramount requirements.

Key Performance Advantages:

• Heavy Series Construction: Designed with extra-heavy rings for superior radial load support and rigidity.
• Superior 2RS Sealing: Integrated contact seals maximize uptime by protecting the bearing from harsh contaminants.
• High Structural Integrity: Optimized steel cage and precision-ground raceways ensure reliable rotation under heavy stress.
• Maintenance-Free Operation: Factory-sealed and lubricated for immediate installation and long-term performance.
• RICH Engineering Standard: Built to provide a robust and durable replacement for demanding industrial applications.

Typical Applications:

• Large-scale industrial electric motors and generators.
• Heavy-duty pumps and industrial gearbox units.
• Agricultural machinery and specialized powertrain components.
• Mining and construction equipment subjected to high radial loads.

Transparency Note: This component is manufactured under the RICH brand. All dimensions, model references, and technical data are provided strictly for identification and compatibility purposes and do not imply affiliation, authorization, or endorsement by other manufacturers.
