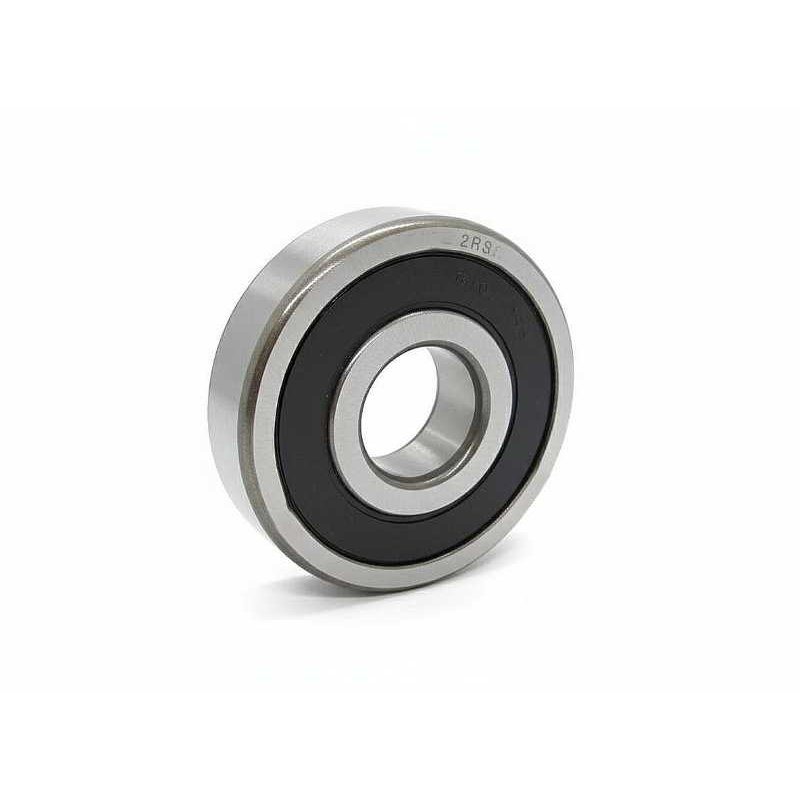

6413 2RS RICH | Single Row Deep Groove Ball Bearing 65 x 160 x 37 mm
Technical Specifications:
- Product Type: Single Row Deep Groove Ball Bearing
- Model Designation: 6413 2RS
- Brand: RICH
- Bore Diameter (d): 65 mm
- Outer Diameter (D): 160 mm
- Width (B): 37 mm
- Internal Clearance: CN (Normal Clearance)
- Sealing: 2RS (Double-sided rubber contact seals)
- Cage Material: Steel
- Weight: 3.347 kg
- Country of Origin: China
The 6413 2RS RICH is a high-capacity single row deep groove ball bearing belonging to the extra-heavy 6400 series. Designed for the most demanding radial load requirements, this bearing features substantial sectional height and large diameter rolling elements. With dimensions of 65 mm bore, 160 mm outer diameter, and 37 mm width, it offers maximum structural rigidity and an exceptional load-carrying profile compared to standard-duty series.
This bearing is equipped with double-sided rubber contact seals (2RS), providing a permanent barrier against the ingress of dust, moisture, and abrasive particles. The 2RS configuration effectively retains high-quality internal lubricant, ensuring long-term maintenance-free operation. The precision-engineered steel cage ensures uniform ball guidance, while the normal internal clearance (CN) makes it ideal for standard operating temperatures and speeds.
The 6413 2RS RICH is a reliable choice for heavy-duty industrial applications, offering superior resistance to deformation and high operational stability in large-scale powertrain and manufacturing systems.
Key Performance Advantages:
- Extra-Heavy Series Design: Engineered with deep raceways and large balls for maximum radial load support.
- Robust 2RS Sealing: Protects internal components from harsh environments, extending the service life significantly.
- High Load Carrying Capacity: Optimized for applications where structural stiffness and high radial forces are present.
- Low Friction & Noise: Precision-ground contact surfaces ensure smooth rotational performance.
- RICH Engineering Standard: Manufactured to exacting industrial tolerances to ensure reliable factory-standard performance.
Typical Applications:
- Large industrial electric motors and high-capacity generators.
- Heavy-duty pumps and industrial gearbox assemblies.
- Agricultural machinery components subjected to extreme radial stress.
- Primary transmission units in mining and construction equipment.
Transparency Note: This component is manufactured under the RICH brand. All dimensions, model references, and technical data are provided strictly for identification and compatibility purposes and do not imply affiliation, authorization, or endorsement by the referenced manufacturers.
