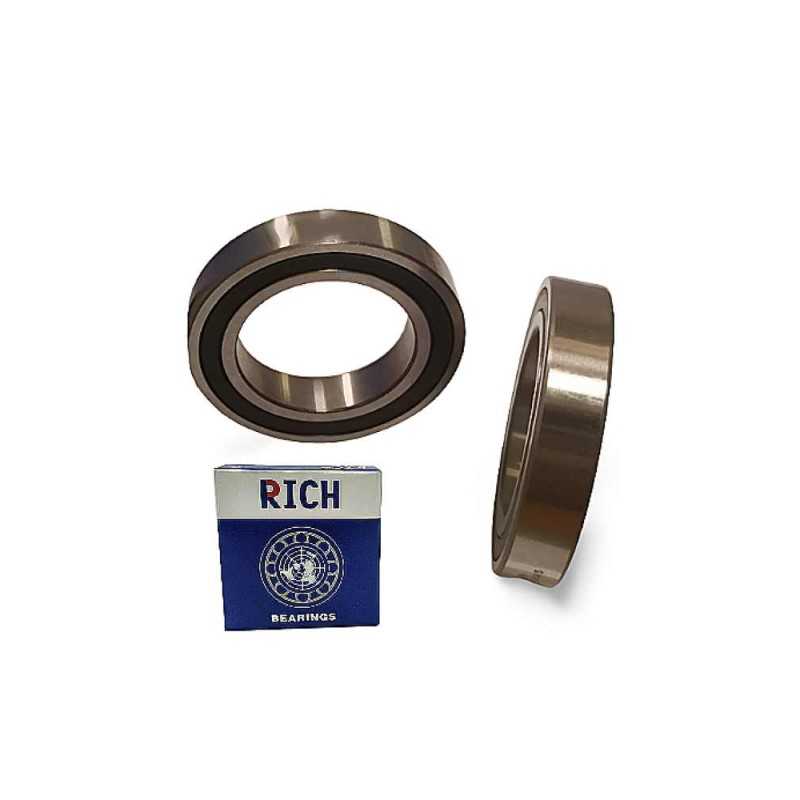

6906-2RS C3 RICH (61906) Thin-Section Deep Groove Ball Bearing - 30 x 47 x 9 mm
Technical Specifications:
- Catalog Code: 6906-2RS C3 RICH (61906-2RS C3)
- Brand: RICH
- Type: Single row deep groove ball bearing (Thin-section)
- Bore Diameter (d): 30 mm
- Outer Diameter (D): 47 mm
- Width (B): 9 mm
- Internal Clearance: C3 (Greater than Normal)
- Sealing: 2RS (Double-sided rubber contact seals)
- Cage Material: Steel
- Weight: 0.05 kg
- Country of Origin: China
Key Performance Advantages:
- High-Temperature Reliability (C3): The increased internal clearance (C3) allows for thermal expansion during high-speed operation or in high-heat environments, ensuring the bearing won't seize and will maintain smooth rotation.
- Optimized Thin-Section Design: Part of the 6900/61900 series, this bearing offers an excellent strength-to-weight ratio, allowing for a large 30 mm shaft in a compact 47 mm housing.
- Hermetic 2RS Protection: The dual rubber contact seals (2RS) effectively shield the internal raceways from moisture, dust, and dirt, while keeping the high-grade grease locked inside for life.
- Precision and Quietness: Despite the larger clearance, the RICH precision manufacturing ensures low noise and vibration, making it suitable for electric bikes, fans, and precision automation.
- Versatile Installation: Frequently used in cycling (bottom brackets and hubs), electric motors, and robotics where space is at a premium.
Transparency Note: This product is manufactured under the RICH brand. The codes 6906-2RS C3 and 61906-2RS C3 are used for identification and compatibility purposes and do not imply affiliation with other manufacturers.
