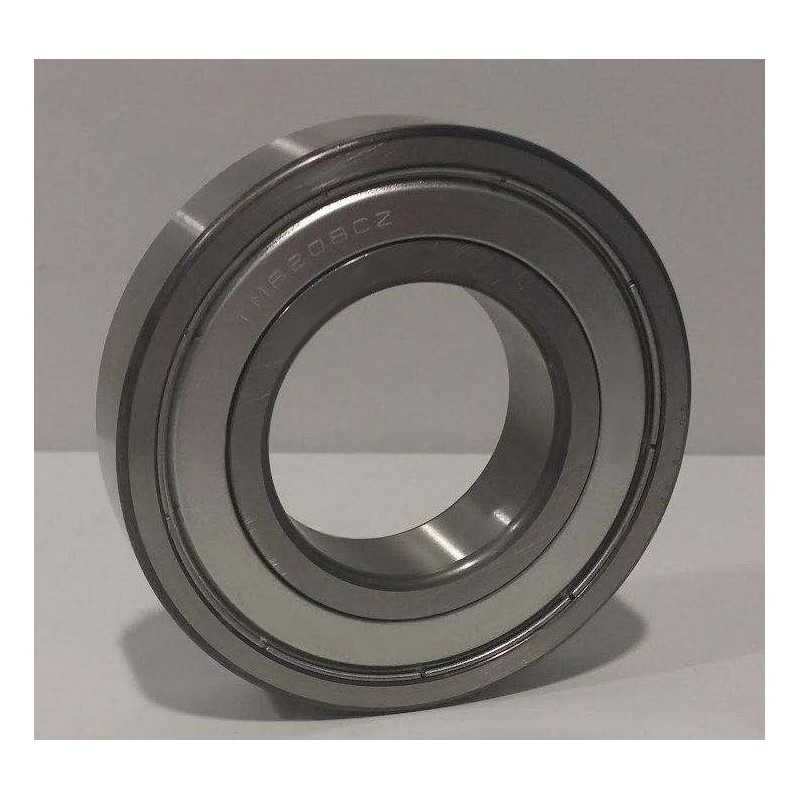

TMB208CX1Z RICH Single Row Deep Groove Ball Bearing – 40 × 80 × 18 mm
OE References / Interchange:
- HONDA: 91005-PS1-003
- HONDA: 91005-PL3-B04
- HONDA: 91005-PL3-B02
- HONDA: 91005-PL3-B03
- HONDA: 91005-PC9-008
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: TMB208CX1Z RICH
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Width (B): 18 mm
- Sealing: One-sided non-contact shield (Z)
- Cage: Steel
- Reinforced Execution: Yes
- Weight: 0.36 kg
- Country of Origin: China
Performance Characteristics:
- Raceway Geometry: Deep groove
- Cage Type: Steel
- Shield Configuration: One-sided non-contact shield
- Internal Structure: Reinforced execution
- Lubrication: Factory-filled grease
TMB208CX1Z RICH is a single row deep groove ball bearing with reinforced execution and one-sided non-contact shield. Dimensional and structural characteristics correspond to the 40 × 80 × 18 mm specification.
Additional Technical Data:
- Designation: TMB208CX1Z
- Bore Type: Cylindrical
- Material: Bearing steel
- Shield Material: Steel
Transparency Note: This component is manufactured under the RICH brand. OE references are provided strictly for identification and compatibility purposes and do not imply affiliation with the original equipment manufacturer.
