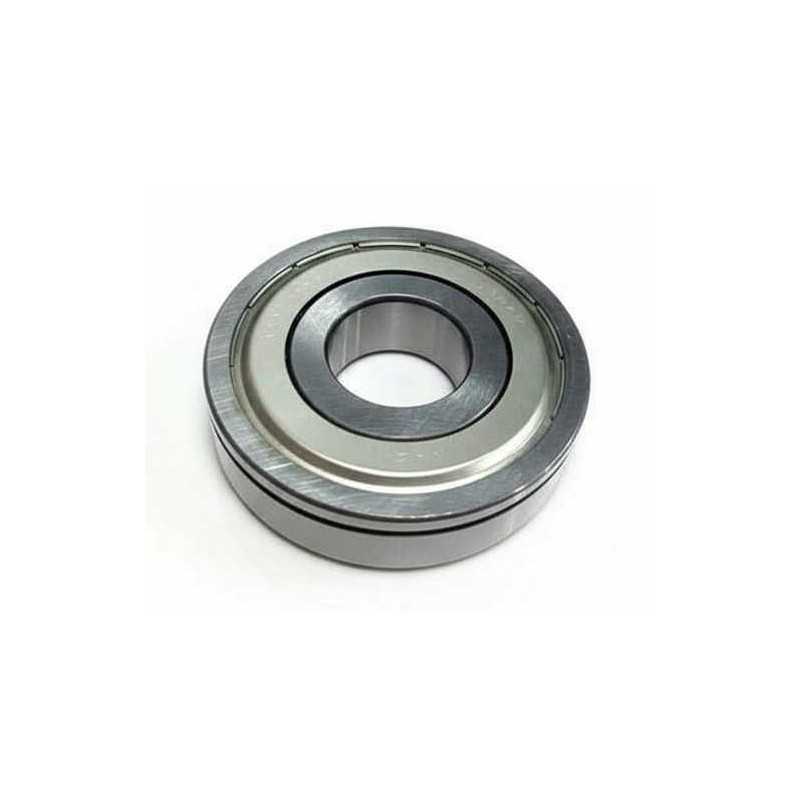

32BC08 S4 N Z RICH Single Row Deep Groove Ball Bearing – 32 × 85 × 22 mm
OE Reference: 90363-32040 (TOYOTA)
The 32BC08 S4 N Z RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 32 × 85 × 22 mm format, featuring a one-sided non-contact metallic shield (Z) and a snap ring groove (N) on the outer ring for axial location.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 32BC08 S4 N Z RICH
- Inner Diameter (d): 32 mm
- Outer Diameter (D): 85 mm
- Width (B): 22 mm
- Sealing: Z (One-sided -contact metallic shield)
- Outer Ring Feature: N (Snap ring groove)
- Weight: 0.5 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial and axial load arrangement
- Retention Layout: Snap ring groove for axial fastening within the housing
- Shielding Arrangement: One-sided non-contact shield for low-friction protection
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Toyota transmission and drivetrain assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
