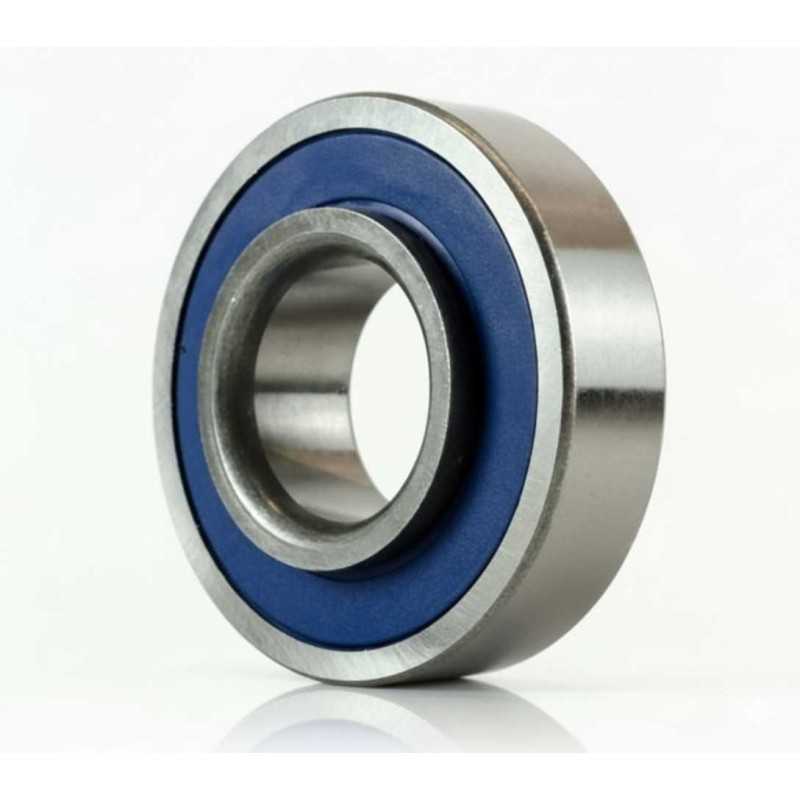

40BCV09 S1 2RS RICH Single Row Deep Groove Ball Bearing – 40 × 90 × 28 mm
OE Reference: 90363-40072 (TOYOTA)
OE Reference: 90363-40068 (TOYOTA)
The 40BCV09 S1 2RS RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 40 × 90 × 28 mm format, incorporating an asymmetric ring configuration with an outer ring width of 23 mm and double‑sided rubber contact seals (2RS).
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 40BCV09 S1 2RS RICH
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 90 mm
- Inner Ring Width (B): 28 mm
- Outer Ring Width (C): 23 mm
- Sealing: Double‑sided rubber contact seals (2RS)
- Weight: 0.691 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial and axial load arrangement
- Sealing Arrangement: Double‑sided contact sealing (2RS) for lubricant retention
- Structural Layout: Asymmetric ring width for defined automotive housing interfaces
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Toyota transmission and drivetrain assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
