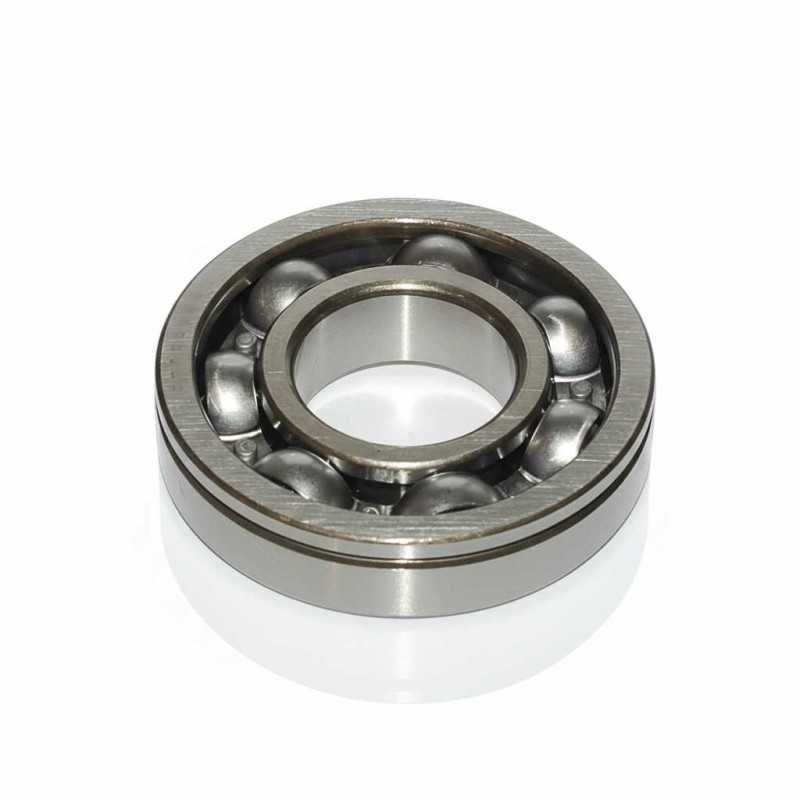

30BC07S7 NR C3 RICH Single Row Deep Groove Ball Bearing – 30 × 68 × 16 mm
OE Reference: 90363-30001 TOYOTA
The 30BC07S7 NR C3 RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 30 × 68 × 16 mm format, incorporating a snap ring groove with snap ring (NR) on the outer ring and a C3 radial internal clearance classification.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 30BC07S7 NR C3 RICH
- Inner Diameter (d): 30 mm
- Outer Diameter (D): 68 mm
- Width (B): 16 mm
- Internal Clearance: C3
- Cage Material: Steel
- Outer Ring Feature: NR (Snap ring groove and snap ring)
- Sealing: Open (None)
- Weight: 0.251 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial and axial load arrangement
- Thermal Classification: C3 clearance for temperature-related dimensional variation
- Retention Layout: NR configuration for secure axial location within the housing
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Toyota transmission and drivetrain assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
