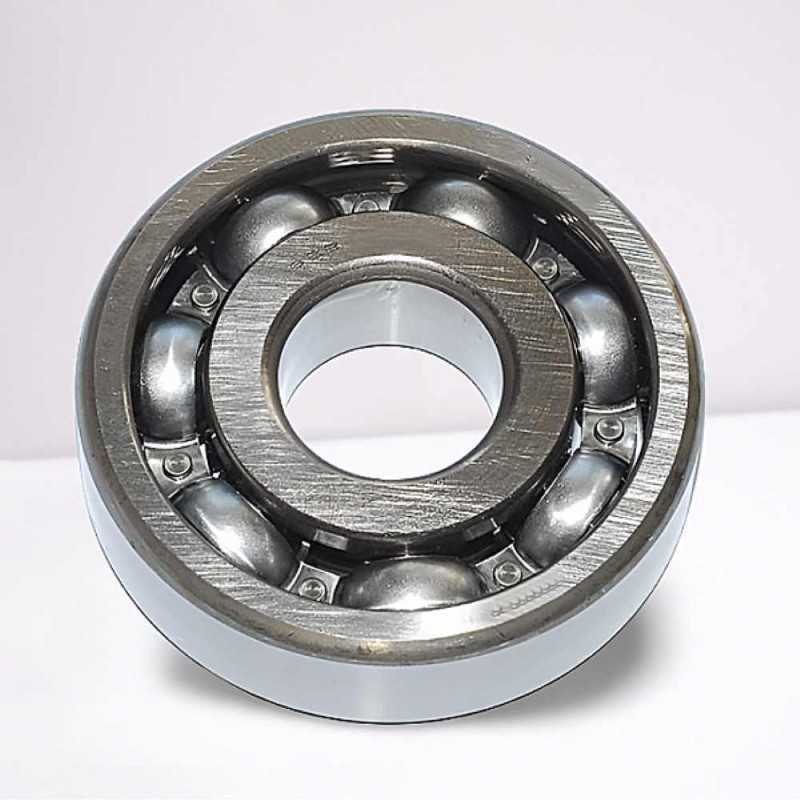

22BC06S5 C3 RICH Single Row Deep Groove Ball Bearing – 22 × 62 × 17 mm
OE Reference: 32219-V5201 (NISSAN)
OE Reference: 32219-V5250 (NISSAN)
The 22BC06S5 C3 RICH is a single row deep groove ball bearing. Its dimensional and structural parameters correspond to the 22 × 62 × 17 mm format, incorporating a steel cage and a C3 radial internal clearance classification for optimized performance under thermal stress.
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 22BC06S5 C3 RICH
- Inner Diameter (d): 22 mm
- Outer Diameter (D): 62 mm
- Width (B): 17 mm
- Internal Clearance: C3
- Cage Material: Steel
- Sealing: Open (None)
- Weight: 0.26 kg
- Country of Origin: China
Performance Characteristics:
- Load Profile: Radial and axial load arrangement
- Thermal Classification: C3 clearance for temperature-related dimensional variation
- Structural Layout: Steel cage guidance for high-speed rotational stability
- Material Type: High‑carbon chrome bearing steel
- Application Interface: Nissan transmission and drivetrain assembly interfaces
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
