TM3/22 A-A-9 RICH 22x56x16 TM3/22AA9CG25 RICH

TM3/22 A-A-9 RICH 22x56x16

Type: Single Row Deep Groove Ball Bearing
Model: RICH TM3/22 A-A-9
Dimensions: 22 x 56 x 16 mm
Brand: RICH
Origin: China
RICH
TM3/22AA9CG25
€5.24
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

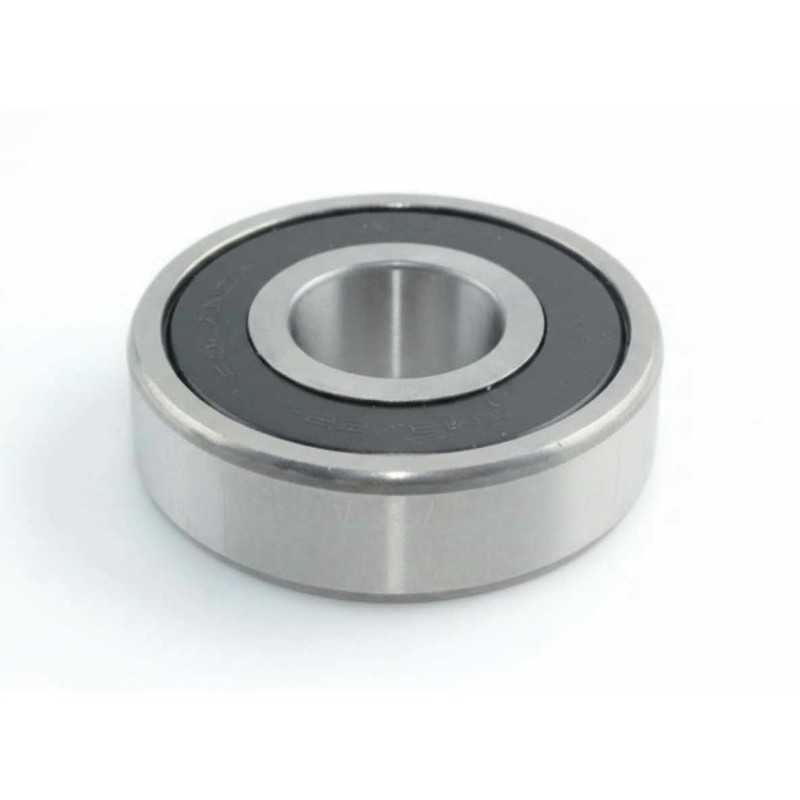

TM3/22 A-A-9 RICH Single Row Deep Groove Ball Bearing – 22 × 56 × 16 mm

Oe References:

  • GETRAG: 9009078971

Technical Specifications:

  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Model: TM3/22 A-A-9 RICH
  • Inner Diameter (d): 22 mm
  • Outer Diameter (D): 56 mm
  • Width (B): 16 mm
  • Radial Clearance: C3 (Greater than Normal)
  • Weight: 0.178 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row radial assembly engineered for high-precision transmission environments.
  • Internal Geometry: Deep groove raceways with C3 internal clearance to compensate for thermal expansion during high-speed operation.
  • Material Type: High‑carbon chrome bearing steel for superior wear resistance and service life.
  • Dimensional Format: 22 × 56 × 16 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
22
Outer Diameter
56
Width
16
Weight
0,178
Ball Rows
Single Row
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
