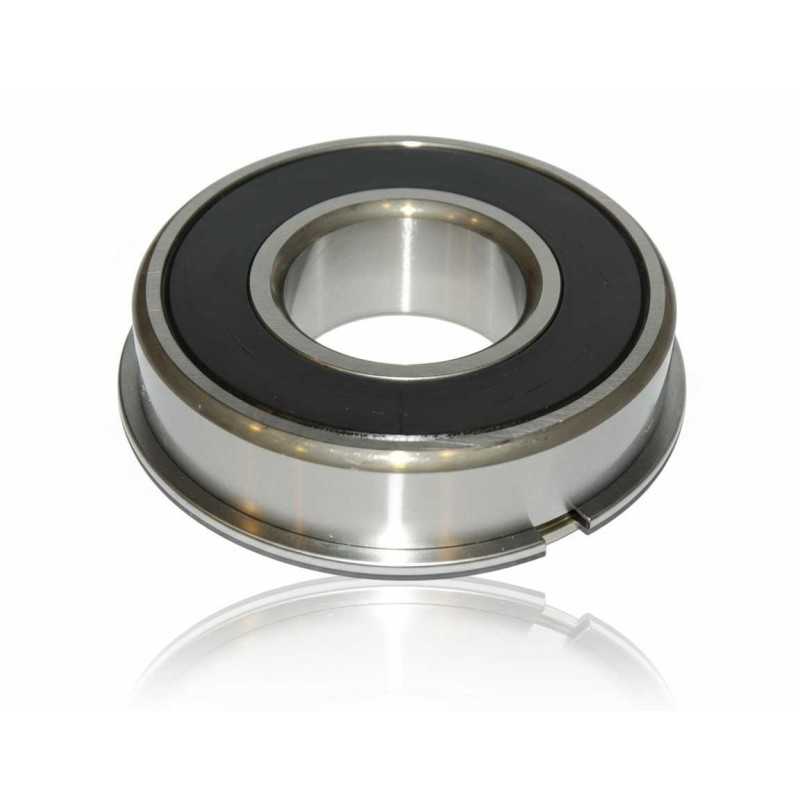

40TM02NXR C4 RICH Single Row Deep Groove Ball Bearing – 40 × 90 × 25 mm
Oe References:
Technical Specifications:
- Brand: RICH
- Type: Single row deep groove ball bearing
- Model: 40TM02NXR C4 RICH
- Inner Diameter (d): 40 mm
- Outer Diameter (D): 90 mm
- Width (B): 25 mm
- Radial Clearance: C4 (Greater than C3)
- Sealing: Double-sided rubber contact seals
- Feature: Groove with snap ring on outer ring
- Weight: 0.695 kg
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Radial ball assembly featuring an integrated snap ring on the outer ring for simplified axial mounting in housings.
- Internal Geometry: Deep groove design with C4 internal clearance, specifically engineered to handle high operational temperatures and significant thermal expansion.
- Material Type: High‑carbon chrome bearing steel for maximum structural integrity and wear resistance.
- Dimensional Format: 40 × 90 × 25 mm configuration.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
