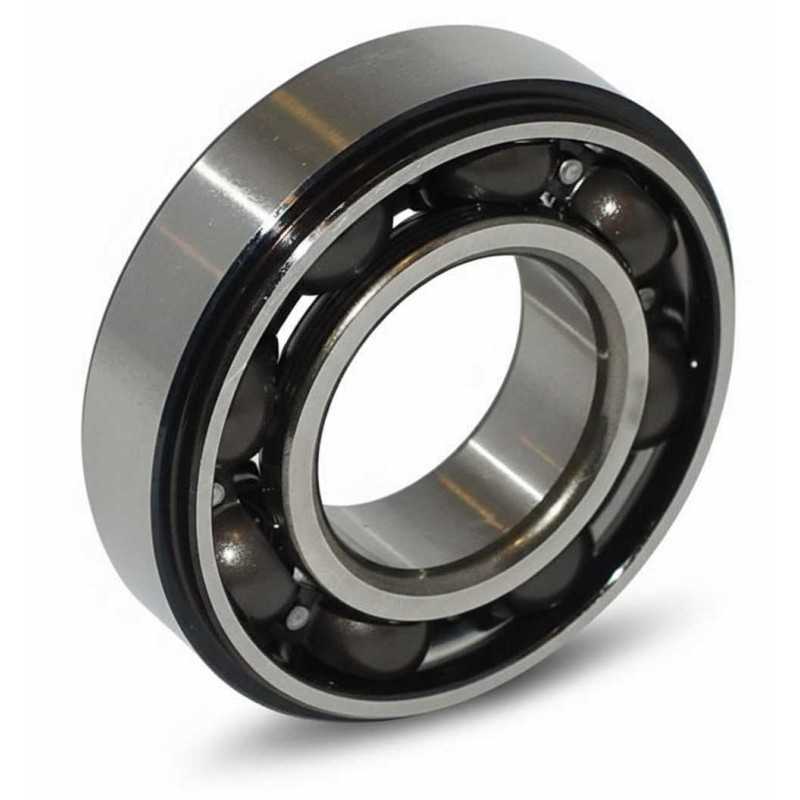

830046-14 RICH 30x62x16 83004614YA1SH2 RICH
zoom_out_map
830046-14 RICH 30x62x16 83004614YA1SH2 RICH

830046-14 RICH 30x62x16

Type: Single Row Deep Groove Ball Bearing
Model: 830046-14 RICH
Dimensions: 30 x 62 x 16 mm
Brand: RICH
Origin: China
RICH
83004614YA1SH2
€18.32
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

830046-14 RICH – 30 × 62 × 16 mm – Single Row Deep Groove Ball Bearing

OE References:

  • SUZUKI 09262-30117

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 830046-14 RICH
  • Inner Diameter (d): 30 mm
  • Outer Diameter (D): 62 mm
  • Width (B): 16 mm
  • Outer Ring Width (C): 13 mm
  • Outer Diameter Chamfer (D'): 57.8 mm
  • Weight: 0.189 kg
  • Cage: Steel
  • Sealing: None (Open bearing)
  • Country of Origin: China

Performance Characteristics:

  • Structural Layout: Single row radial ball bearing with defined outer ring geometry.
  • Internal Geometry: Deep groove raceways suitable for combined radial and axial load distribution.
  • Material Composition: High-carbon chromium steel rings and rolling elements.
  • Lubrication: Open configuration without integrated sealing elements.
  • Dimensional Format: 30 × 62 × 16 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
62/57.8
Width
16/13
Weight
0,3
Ball Rows
Single Row
Cage
Steel Cage
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
