FZ 6204 RICH 20x47x14

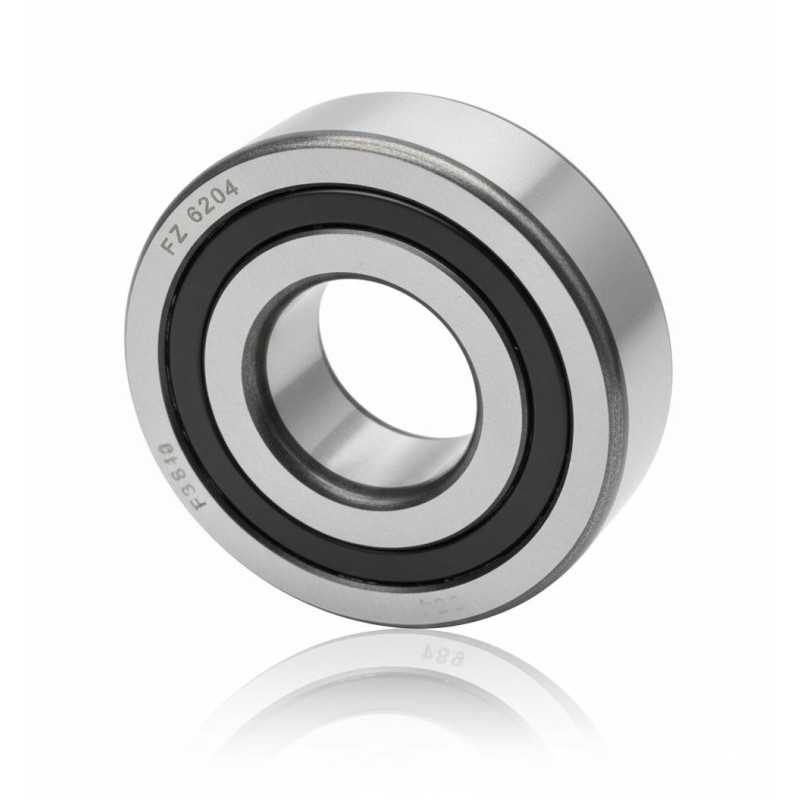

FZ 6204 RICH Ball Bearing Freewheel Clutch – 20 × 47 × 14 mm

Technical Specifications:

• Type: Ball bearing freewheel clutch
• Brand: RICH
• Model Designation: FZ 6204 RICH
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 47 mm
• Width (B): 14 mm
• Weight: 0.128 kg
• Country of Origin: China

Performance Characteristics:

• Structural Layout: Specialized assembly combining a deep groove ball bearing with a precision overrunning clutch mechanism.
• Internal Geometry: Engineered to provide radial support while enabling unidirectional torque transmission within a compact 6204 envelope.
• Material Composition: Manufactured from premium high-carbon chromium steel for high hardness and wear resistance during engagement cycles.
• Operational Logic: Designed for applications requiring backstopping, overrunning, or indexing, ensuring immediate locking in one direction and friction-minimized rotation in the other.
• Dimensional Format: 20 × 47 × 14 mm configuration.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
