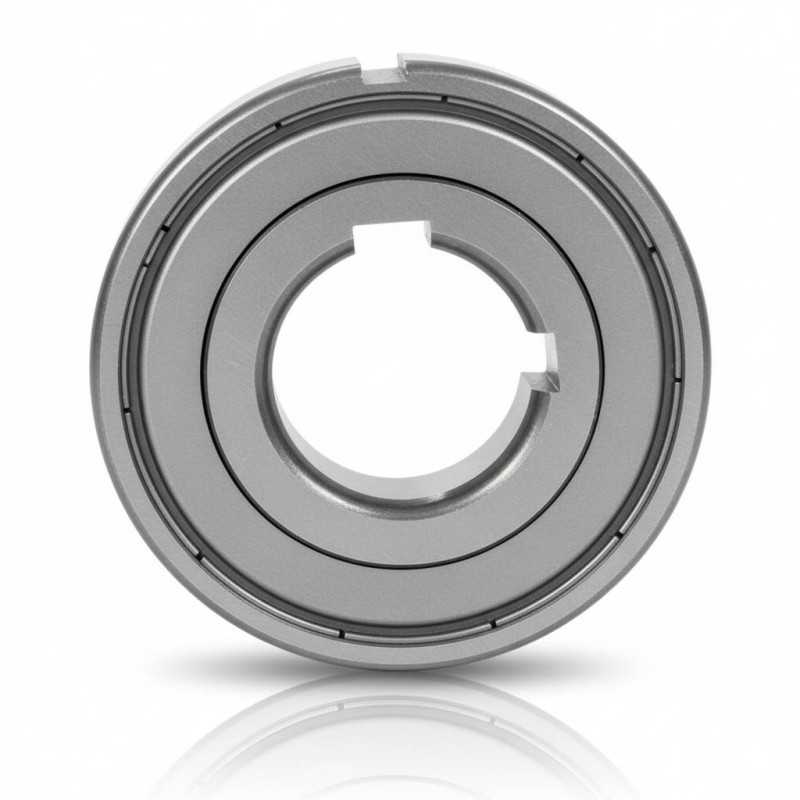

FZ 6207 PP RICH Ball Bearing Freewheel Clutch – 35 × 72 × 17 mm
Technical Specifications:
- Type: Ball bearing freewheel clutch
- Brand: RICH
- Model Designation: FZ 6207 PP RICH
- Inner Diameter (d): 35 mm
- Outer Diameter (D): 72 mm
- Width (B): 17 mm
- Weight: 0.352 kg
- Feature: Double Keyway (Inner and Outer Ring)
- Country of Origin: China
Performance Characteristics:
- Structural Layout: Specialized assembly featuring a 6207 series deep groove ball bearing integrated with a sprag-type freewheel mechanism.
- Keyway Configuration: The PP designation indicates a precision keyway connection on both the inner and outer rings for secure torque transmission.
- Internal Geometry: Engineered with sprags and internal bearing support to ensure accurate alignment and immediate engagement.
- Material Composition: Constructed from premium high-carbon chromium steel for maximum mechanical strength and high resistance to wear.
- Operational Logic: Designed for overrunning, indexing, and backstopping applications where a mechanical key connection to the housing and shaft is required.
Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
