• New

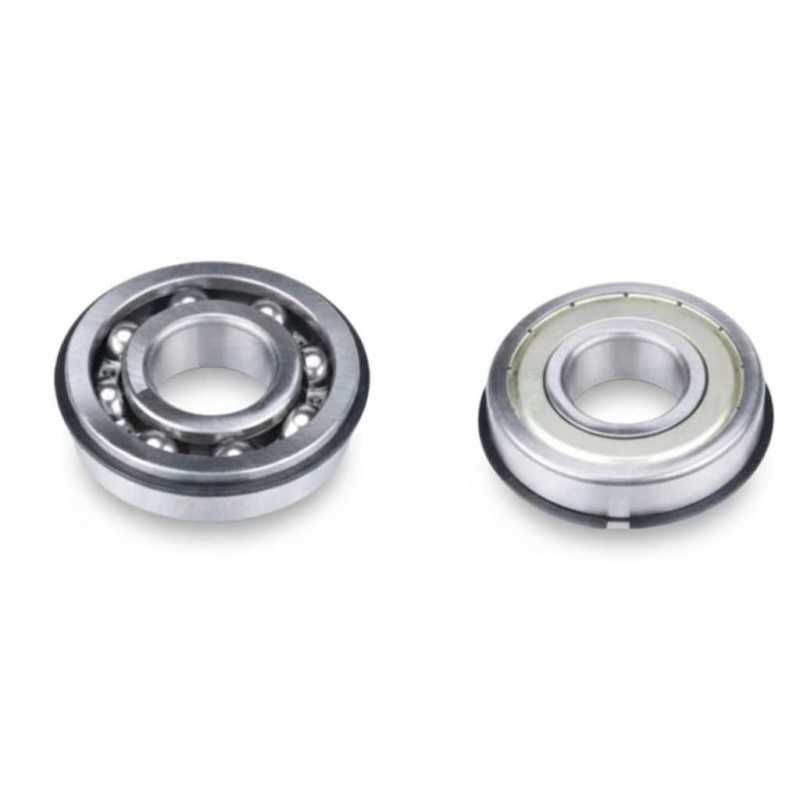

6009 Z NR RICHJ 45x75x16 6009ZNR RICH
zoom_out_map
6009 Z NR RICHJ 45x75x16 6009ZNR RICH

6009 Z NR RICHJ 45x75x16

Type: Single Row Deep Groove Ball Bearing
Model: 6009 Z NR RICH
Dimensions: 45 x 75 x 16 mm
Features: Snap Ring (NR), Single Metal Shield (Z), CN Clearance
Brand: RICH
Origin: China
RICH
6009ZNR
€3.05
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

6009 Z NR RICH – Single Row Deep Groove Ball Bearing – 45 x 75 x 16 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 6009ZNR
  • Inner Diameter (d): 45 mm
  • Outer Diameter (D): 75 mm
  • Width (B): 16 mm
  • Sealing: Z (One-sided non-contact metal shield)
  • Mounting Feature: NR (Snap ring groove with snap ring on the outer ring)
  • Internal Clearance: CN (Normal clearance)
  • Weight: 0.24 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Precision-engineered deep groove raceways designed for high-speed reliability and the balanced support of radial and axial loads.
  • Sealing System: Features a single-sided non-contact metal shield (Z) to provide essential protection against large particulate matter while maintaining low starting and running torque.
  • Mounting Interface: Integrated with a snap ring and groove (NR) on the outer ring, allowing for efficient axial locking and simplified installation within the bearing housing.
  • Mechanical Interface: 45 x 75 x 16 mm dimensional format manufactured according to industrial precision tolerances for smooth rotation and long service life.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
45
Outer Diameter
75
Width
16
Ball Rows
Single Row
Cage
Steel
Clearance
CN (Normal)
Category
Single Row Deep Groove Ball Bearing
