• New
6312 Z NR RICH 60x130x31 6312ZNR RICH
zoom_out_map

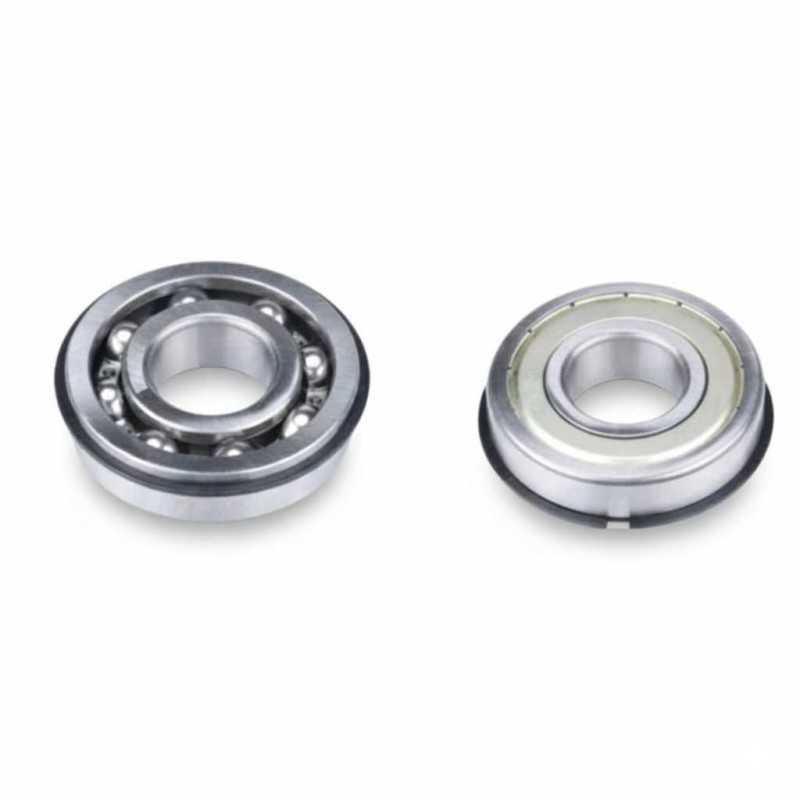

6312 Z NR RICH 60x130x31 6312ZNR RICH

6312 Z NR RICH 60x130x31

Type: Single Row Deep Groove Ball Bearing
Model: 6312 Z NR RICH
Dimensions: 60 x 130 x 31 mm
Features: Snap Ring (NR), Single Metal Shield (Z), Steel Cage
Brand: RICH
Origin: China
RICH
6312ZNR
€16.22
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

6312 Z NR RICH – Single Row Deep Groove Ball Bearing – 60 x 130 x 31 mm

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 6312 Z NR
  • Inner Diameter (d): 60 mm
  • Outer Diameter (D): 130 mm
  • Width (B): 31 mm
  • Sealing: Z (One-sided non-contact metal shield)
  • Mounting Feature: NR (Snap ring groove with snap ring on the outer ring)
  • Internal Clearance: CN (Normal clearance)
  • Cage Material: Steel
  • Weight: 1.642 kg
  • Country of Origin: China

Performance Characteristics:

  • Structural Configuration: Deep groove raceway geometry engineered for high-speed stability and the ability to support both radial and axial loads in both directions.
  • Sealing System: Integrated with a single non-contact metal shield (Z) to protect the internal rolling elements from large debris while maintaining low frictional torque.
  • Mounting Interface: Features a snap ring and groove (NR) on the outer ring, allowing for simplified axial location and secure retention within the housing.
  • Mechanical Interface: 60 x 130 x 31 mm dimensional format manufactured according to industrial precision tolerances for heavy-duty industrial applications.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
60
Outer Diameter
130
Width
31
Ball Rows
Single Row
Sealing
Cover On One Side
Cage
Steel
Category
Single Row Deep Groove Ball Bearing
