6309 Z NR RICH 45x100x25

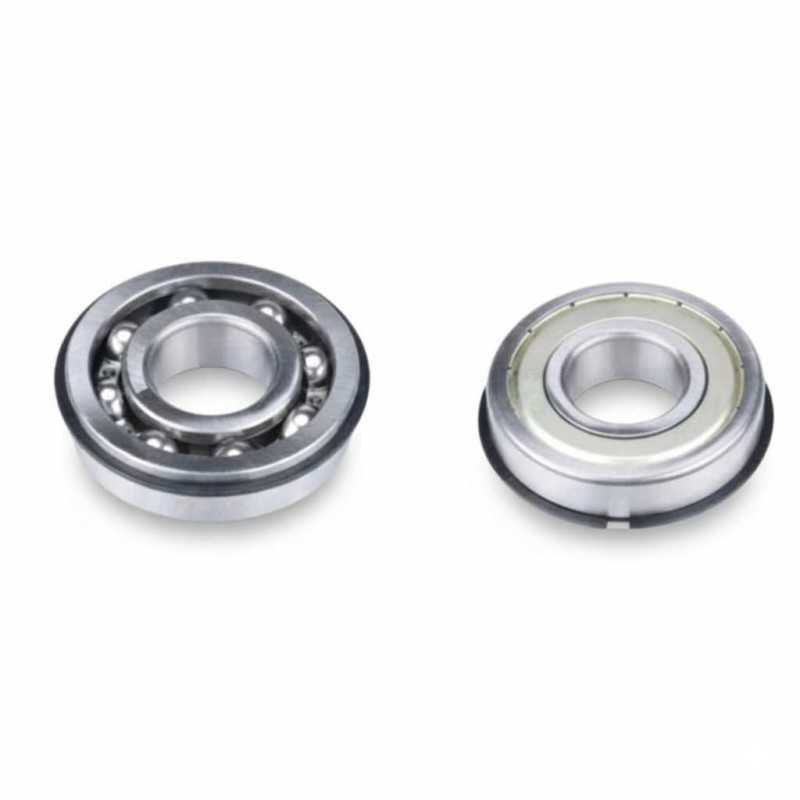

6309ZNR RICH – Single Row Deep Groove Ball Bearing – 45 x 100 x 25 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6309ZNR
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 100 mm
• Width (B): 25 mm
• Internal Clearance: CN (Normal)
• Cage Material: Steel
• Sealing: One-sided non-contact shield (Z)
• Feature: Outer ring groove with snap ring included (NR)
• Weight: 0.83 kg
• Country of Origin: China

Performance Characteristics:

• Structural Configuration: Single row deep groove ball bearing designed for radial and axial load management.
• Component Geometry: Equipped with a snap ring and groove on the outer ring for simplified axial mounting and location within the housing.
• Dimensional Format: 45 x 100 x 25 mm bearing manufactured according to standardized industrial tolerances.
• Sealing and Protection: Features a single metal shield (Z) to minimize particulate ingress while maintaining low rotational friction.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
