F685 ZZ R04 RICHJ 5x11x4

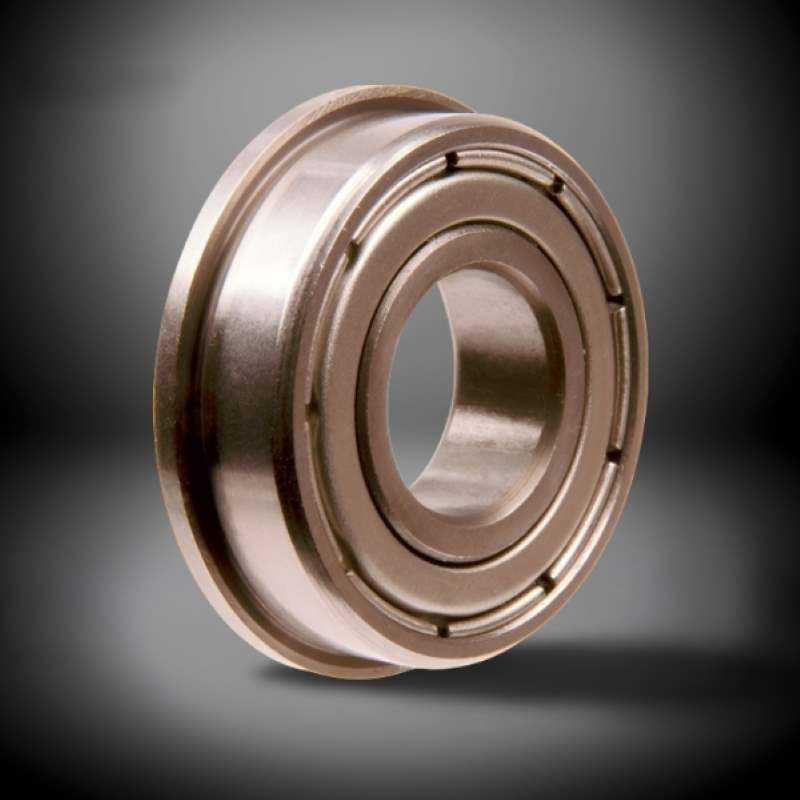

F685ZZ R04 RICH – Flanged Deep Groove Ball Bearing – 5 x 11 x 4 mm

Technical Specifications:

• Type: Flanged deep groove ball bearing
• Brand: RICH
• Model Designation: F685ZZ R04
• Inner Diameter (d): 5 mm
• Outer Diameter (D): 11 mm
• Width (B): 4 mm
• Flange Diameter: 12.6 mm
• Internal Clearance: CN (Normal clearance)
• Cage Material: Steel
• Sealing: Double-sided non-contact shields (ZZ)
• Weight: 0.002 kg
• Country of Origin: China

Performance Characteristics:

• Miniature Design: Optimized for precision in small-scale and space-limited applications.
• Integrated Flange: The outer ring features a flange for simplified axial location and mounting within housings.
• Dimensional Suffix (R04): The R04 designation indicates a specific width variation where the dimension ends in 4 mm instead of the standard 5 mm for this series.
• Sealing Configuration: Equipped with metal shields (ZZ) to protect against debris while maintaining low friction.
• Mass: Ultra-lightweight construction at 0.002 kg.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
