30TM12-A N 2RS RICH 30x80x20

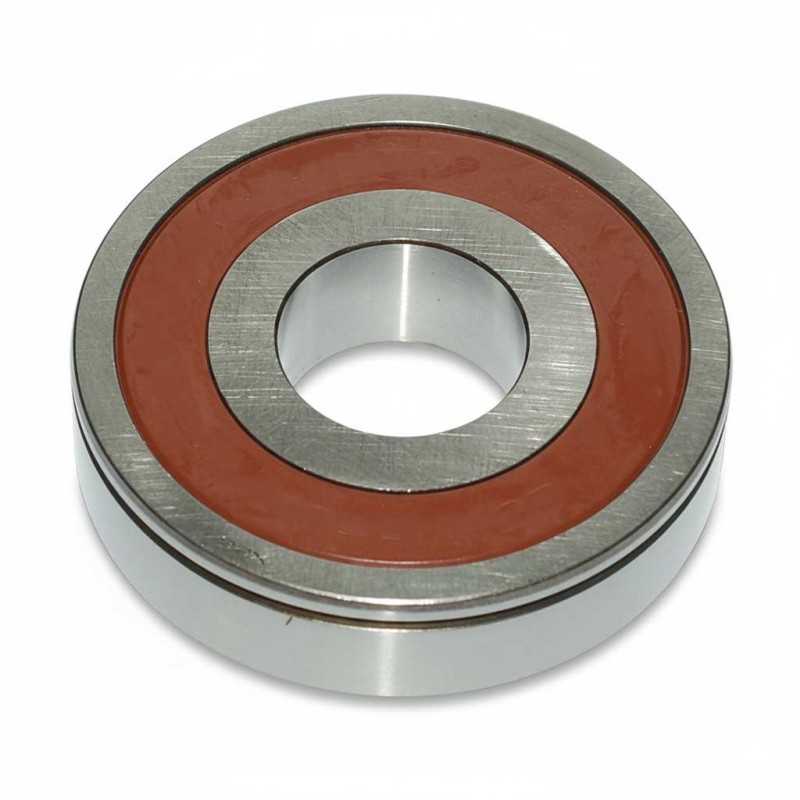

30TM12-A N 2RS RICH – Deep Groove Ball Bearing – 30 × 80 × 20 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 30TM12-A N 2RS
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 80 mm
• Width (B): 20 mm
• Sealing: Double-sided contact rubber seals (2RS)
• Outer Ring Feature: Snap ring groove (N)
• Weight: 0.491 kg
• Country of Origin: China

Construction Features:

• Snap Ring Groove: The outer ring includes a specialized groove (N) designed for axial location using a snap ring, simplifying housing design.
• Sealing System: Equipped with high-performance contact rubber seals on both sides to ensure maximum lubricant retention and protection against contaminants.
• Internal Geometry: Single row deep groove design optimized for high-speed operation and handling both radial and moderate axial loads.
• Reliability: Precision-ground raceways and high-quality rolling elements ensure quiet operation and a long service life.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
