QJ209M RICH 45x85x19

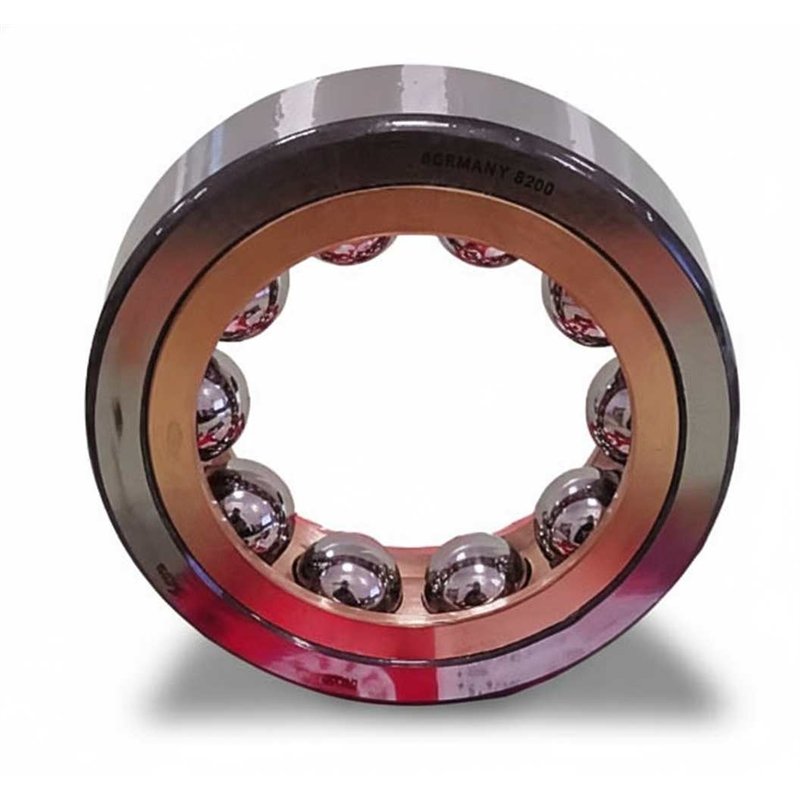

QJ209M RICH – Four Point Contact Ball Bearing – 45 × 85 × 19 mm

Technical Specifications:

• Type: Four point contact ball bearing
• Brand: RICH
• Model Designation: QJ209M
• Inner Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Width (B): 19 mm
• Cage Material: Machined brass, guided by the rolling elements
• Ring Design: Split inner ring
• Sealing: None (Open)
• Weight: 0.48 kg
• Country of Origin: China

Construction Features:

• Bi-Directional Axial Support: The four-point contact raceway geometry enables this single row bearing to handle significant axial loads in both directions.
• Heavy-Duty Brass Cage: Equipped with a machined brass cage (M) that ensures superior durability and reduced friction, even in high-stress industrial applications.
• Precision Split Ring: The inner ring is split into two halves, allowing for a higher ball complement and simplified mounting within complex assemblies.
• Streamlined Design: Provides a high load-carrying capacity while occupying less axial space than traditional double row angular contact arrangements.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
