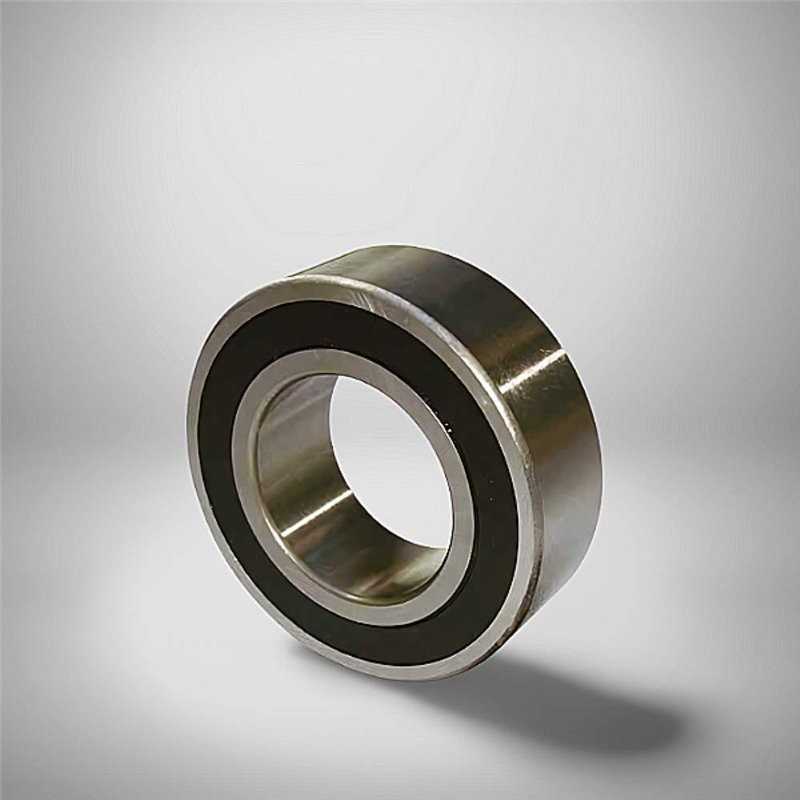

4202TN-2RS RICH 15x35x14

4202TN-2RS RICH – Double Row Deep Groove Ball Bearing – 15 x 35 x 14 mm

Technical Specifications:

• Type: Double row deep groove ball bearing
• Brand: RICH
• Model Designation: 4202TN-2RS
• Inner Diameter (d): 15 mm
• Outer Diameter (D): 35 mm
• Width (B): 14 mm
• Cage Material: Polyamide (TN)
• Sealing: Double-sided rubber, contact type (2RS)
• Weight: 0.062 kg
• Country of Origin: China

Construction Features:

• Component Design: The unit is configured with integrated, double-sided contact rubber seals designed to retain internal lubricants while preventing contaminant ingress.
• Internal Configuration: The layout uses a double row structural arrangement of rolling elements managed by a lightweight, injection-molded polyamide cage for quiet operation.
• Dimensional Profile: The physical architecture features a 15 mm nominal internal diameter, a 35 mm outer diameter, and an axial width specification of 14 mm.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
