6204 RS / 16,5 RICH 20x47x16,5

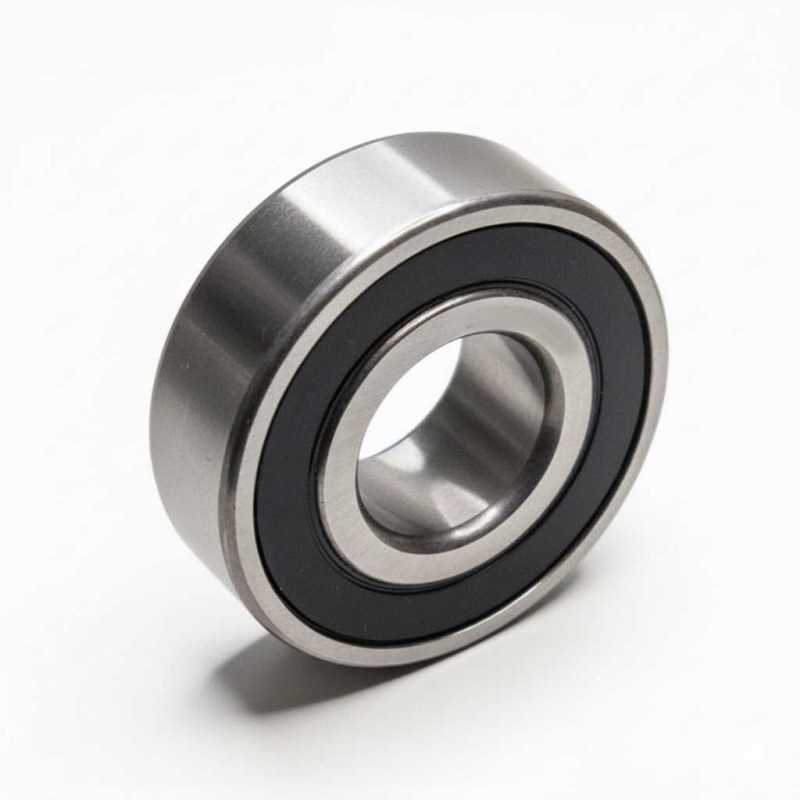

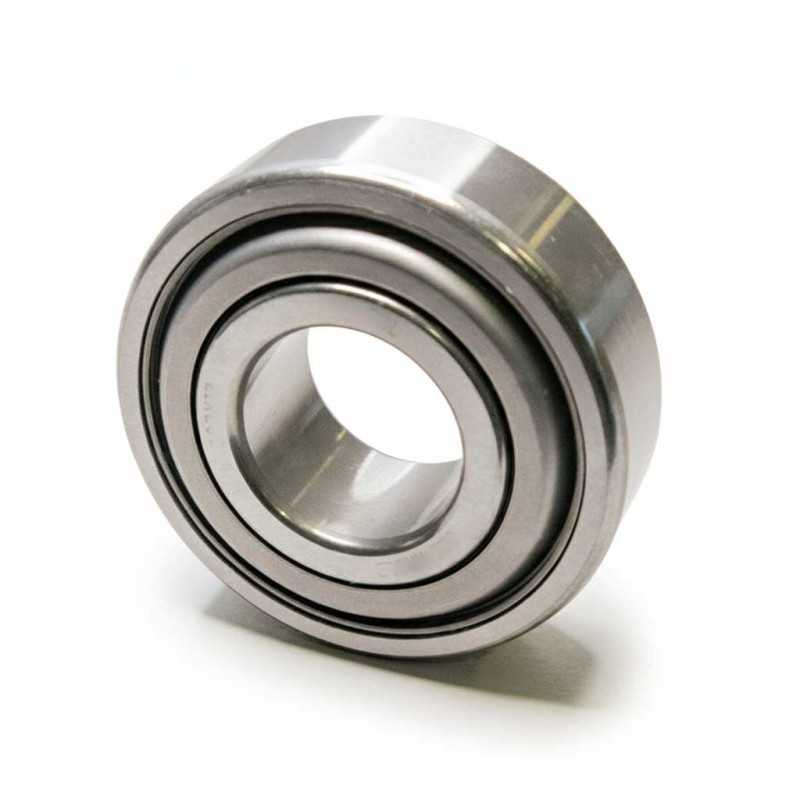

6204 RS / 16,5 RICH – Single Row Deep Groove Ball Bearing – 20 x 47 x 16.5 mm

OE References:

• FKL: 6204 RSL3
• MZURI: 40089
• OTICO: 009620.00
• POTTINGER: 400.524, 400524

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: 6204 RS / 16,5
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 47 mm
• Width (B): 16.5 mm
• Outer Ring Width (C): 15 mm
• Clearance: CN (Normal clearance)
• Sealing: One-sided plastic contact seal (RS)
• Weight: 0.121 kg
• Country of Origin: China

Construction Details:

• Components: Outer ring, inner ring, cage assembly, steel balls, and a one-sided plastic contact seal.
• Configuration: Radial single row deep groove execution featuring an asymmetrical width configuration optimized for specific agricultural machinery tracking setups.
• Rolling Elements: Ball complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
