FKN 6206 2RS RICH 30x62x16

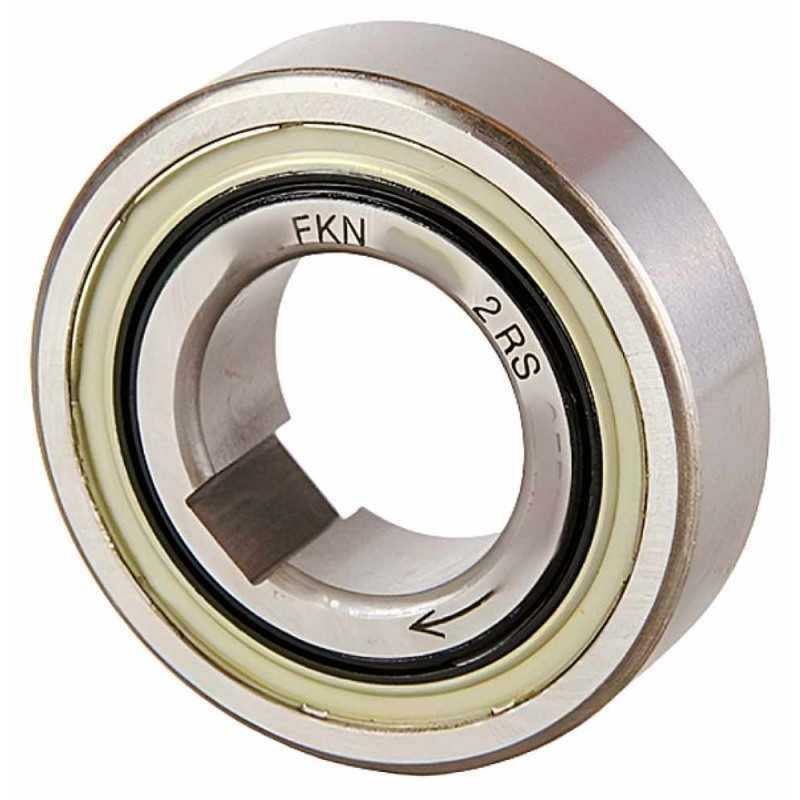

FKN 6206 2RS RICH – Ball Bearing Freewheel Clutch – 30 x 62 x 16 mm

Technical Specifications:

• Type: Ball bearing freewheel clutch
• Brand: RICH
• Model Designation: FKN 6206 2RS
• Inner Diameter (d): 30 mm
• Outer Diameter (D): 62 mm
• Width (B): 16 mm
• Keyway Feature (Width x Height): 8 x 5 mm
• Sealing: Double-sided rubber seal (2RS)
• Weight: 0.231 kg
• Country of Origin: China

Construction Details:

• Components: Outer ring, inner ring with integrated keyway slot, load-bearing ball series complement, one-way sprag freewheel mechanism, and double-sided rubber contact seals.
• Configuration: Combined radial ball bearing and freewheel clutch configuration based on the 6206 series envelope, engineered with an 8x5 mm internal keyway for positive torque engagement on the shaft and sealed protection against grease loss and contamination.
• Rolling Elements: Ball and sprag complement.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
