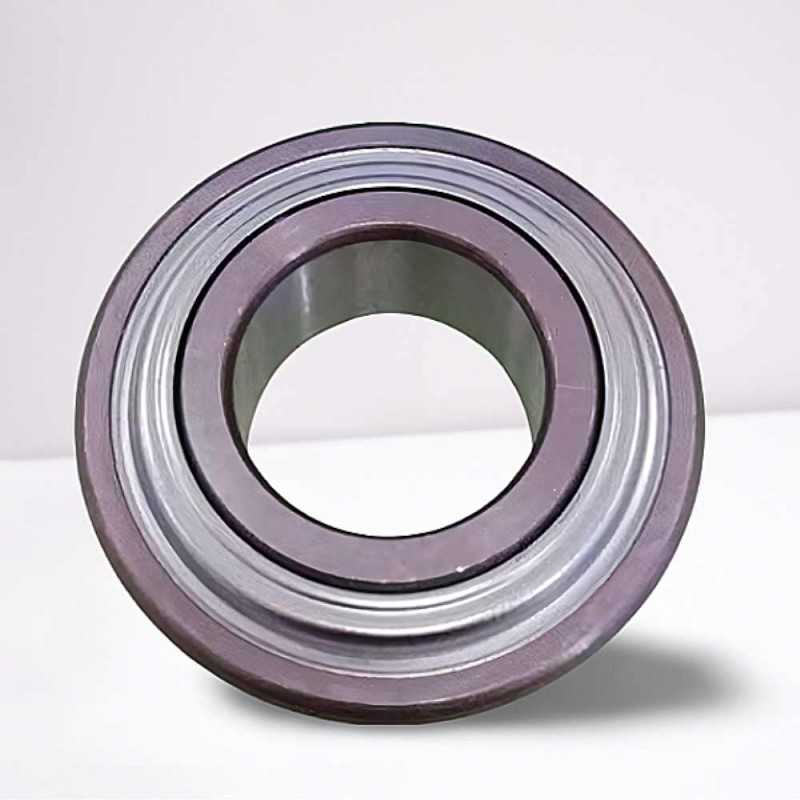

208KRR4C3 RICH 38,892x80x27,508

208KRR4C3 RICH Ball Bearing with Flat Outer Ring - 38.892 x 80 x 27.508 mm Sealed

OE References:

• A&S: 208 KRR4 C3
• FAG: 577188
• FAFNIR: 208KRR4
• INA: 208KRR4, 208-XL-KRR-AH04
• SKF: 12G-88128A, 12G-88128TN9/GJN, 12G88128TN9GJN

Technical Specifications:

• Bearing Type: Ball Bearing with Flat Outer Ring
• Model Designation: 208KRR4C3
• Brand: RICH
• Inner Diameter (d): 38.892 mm
• Outer Diameter (D): 80 mm
• Inner Ring Width: 27.508 mm
• Outer Ring Width (C): 21 mm
• Clearance: C3 - Greater than Normal
• Outer Ring: Flat (Cylindrical)
• Sealing: Double-sided lip seal covered with a plate
• Weight: 0.5 kg
• Country of Manufacture: China

The 208KRR4C3 RICH ball bearing with a flat outer ring, meticulously manufactured by RICH in China, is engineered for robust and precise performance in a wide range of industrial and agricultural applications. This high-capacity bearing features dimensions of 38.892 mm inner diameter, 80 mm outer diameter, 27.508 mm inner ring width, and 21 mm outer ring width. Its C3 clearance, which is greater than normal, accommodates thermal expansion and potential misalignment, ensuring stable operation. Designed with a flat (cylindrical) outer ring, it is ideal for applications requiring direct contact with flat surfaces or specific housing designs. Equipped with double-sided lip seals covered with plates, this RICH bearing provides superior protection against contaminants, ensuring extended service life even in challenging environments. Weighing 0.5 kg, the 208KRR4C3 RICH bearing is an essential component for various machinery, offering exceptional durability and efficiency, and is interchangeable with models from FAFNIR, FAG, INA, SKF, and A&S.

Key Performance Advantages:

• Flat (Cylindrical) Outer Ring: Ideal for applications requiring direct contact with flat surfaces or specific housing designs.
• C3 Clearance: Provides greater than normal internal clearance, beneficial for applications involving thermal expansion or light misalignment.
• Double-Sided Lip Seals with Plates: Offers enhanced protection against dust, dirt, and moisture ingress, prolonging bearing life.
• High Load Capacity: Designed for reliable performance under significant radial and axial loads.
• Robust Construction: Engineered for dependable performance in demanding industrial and agricultural environments.
• RICH Quality: Manufactured in China to high standards, guaranteeing consistent performance and reliability.
