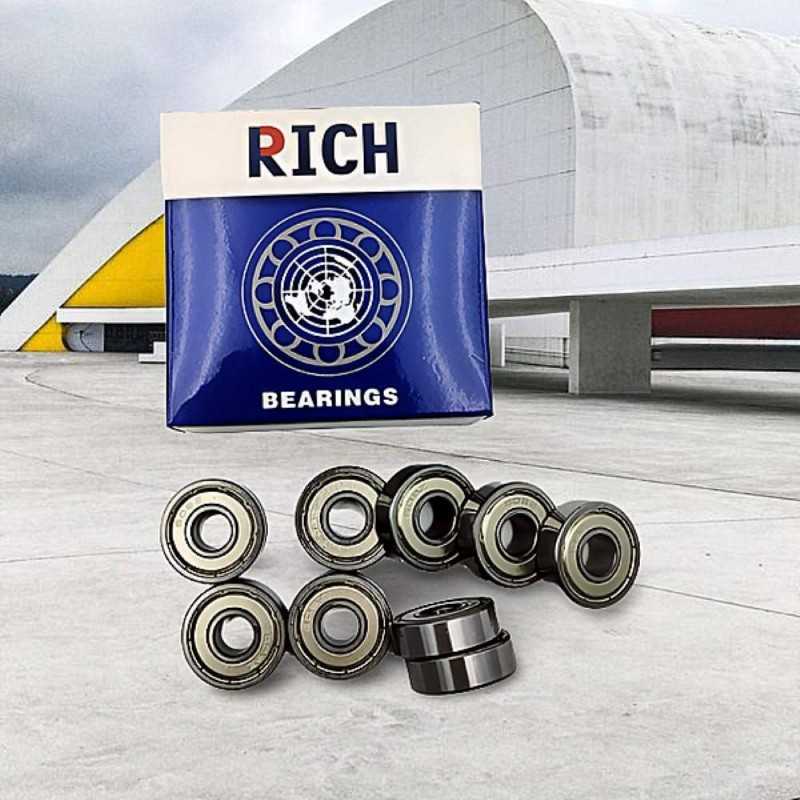

698-2Z RICH – Miniature Ball Bearing 8x19x6 mm – Shielded, High-Precision Design

The 698-2Z RICH is a compact and reliable deep groove miniature ball bearing, manufactured by RICH in China. With its slim profile and dual steel shields (2Z), it is specifically crafted for equipment requiring smooth rotation, tight dimensional tolerance, and long service life in limited space environments.

Measuring 8 mm in bore diameter, 19 mm outer diameter, and 6 mm in width, the 698-2Z is ideal for applications such as small electric motors, compact automation modules, high-speed fans, and 3D printing systems. The metal shields provide dependable protection against light contaminants while maintaining lubrication inside, reducing wear and extending operational longevity.

Its internal structure features a robust steel cage, ensuring stability at higher speeds and under radial load. The bearing also operates with standard internal clearance (CN), delivering balanced performance in both horizontal and vertical shafts where compactness and precision are essential.

Technical Specifications:

  • Type: Miniature Single Row Deep Groove Ball Bearing
  • Model: 698-2Z RICH
  • Dimensions: 8 mm bore × 19 mm outer diameter × 6 mm width
  • Weight: 0.005 kg
  • Cage Material: Steel
  • Clearance: CN (Normal)
  • Sealing: Metal shields on both sides (2Z)
  • Country of Origin: China

Main Benefits:

  • Engineered for compact assemblies where space-saving is key
  • Metal shields offer clean and low-maintenance operation
  • Suited for axial and radial loads in high-speed, small-scale systems
  • Manufactured by RICH with quality standards and dimensional accuracy
  • Excellent choice for micro drives, precision robots, and small gearboxes

Typical Applications:

  • Stepper motors and brushless micro motors
  • Miniature gearboxes and encoder shafts
  • 3D printer rollers and guides
  • Medical or lab equipment with compact moving parts

Data sheet

Inner Diameter
8
Outer Diameter
19
Width
6
Weight
0,059
Sealing
Cover On Both Sides
Category
Single Row Deep Groove Ball Bearing
