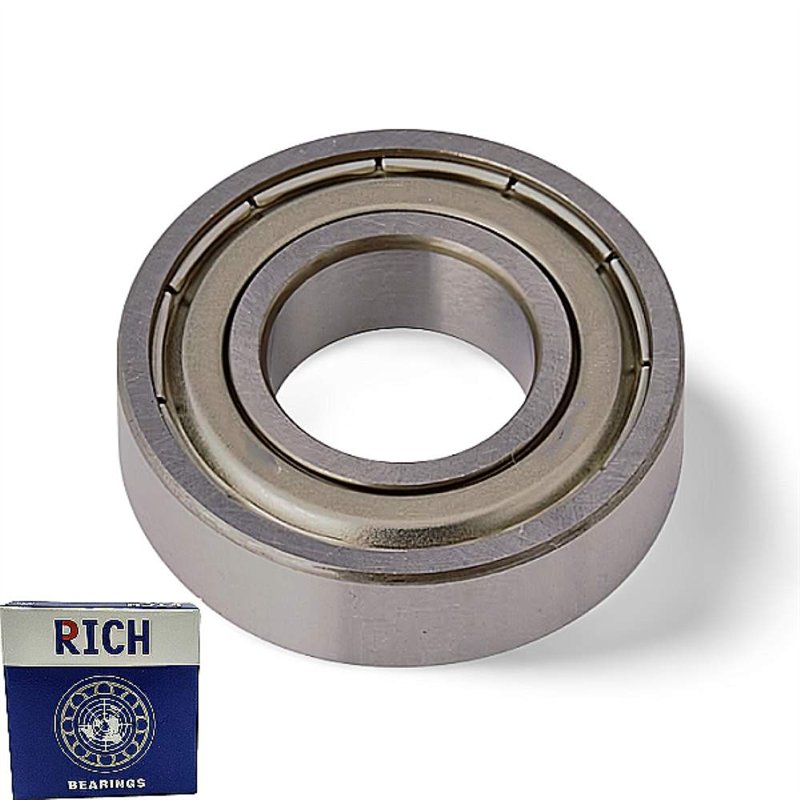

6308-2Z/C3 RICH 40x90x23 6308-2Z/C3 RICH
zoom_out_map
6308-2Z/C3 RICH 40x90x23 6308-2Z/C3 RICH

6308-2Z/C3 RICH 40x90x23

Type: Single Row Deep Groove Ball Bearing
Model: RICH 6308-2Z/C3 C3
Dimensions: 40 × 90 × 23 mm
Brand: RICH
Origin: China
RICH
6308-2Z/C3

Volume discounts

Quantity Unit price
10 €1.04
20 €0.99
50 €0.94
100 €0.89
€1.15
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

6308-2Z/C3 RICH Single row deep groove ball bearing – 40 × 90 × 23 mm (2Z, C3 clearance)

Technical Specifications:

  • Type: Single row deep groove ball bearing
  • Brand: RICH
  • Model Designation: 6308-2Z/C3 RICH
  • Inner Diameter (d): 40 mm
  • Outer Diameter (D): 90 mm
  • Width (B): 23 mm
  • Cage Material: Steel
  • Clearance: Increased internal clearance (C3)
  • Sealing: Double-sided non-contact metal shields (2Z)
  • Dimensional Category: standard-format
  • Country of Origin: China

Performance Characteristics:

  • Load Arrangement: Suitable for radial loads with auxiliary axial load capability.
  • Internal Geometry: Deep groove configuration supporting predictable rotational movement.
  • Structural Layout: Structural cage arrangement supporting predictable element movement.
  • Operating Profile: Designed for consistent behavior within standard mechanical environments.

6308-2Z/C3 (40 × 90 × 23 mm) — retains the geometric relationships expected for bearings within the standard-format category.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references, where mentioned, are used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
40
Outer Diameter
90
Width
23
Weight
0,64
Ball Rows
Single Row
Sealing
Cover On Both Sides
Cage
Steel Cage
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
