6307 N RICH 35x80x21

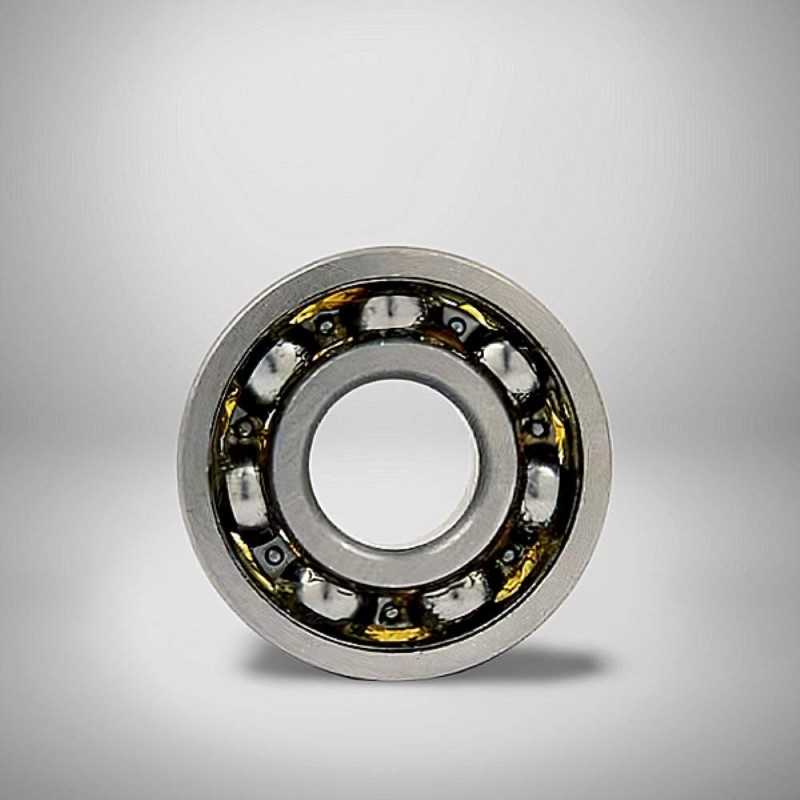

6307N RICH Single Row Deep Groove Ball Bearing 35 x 80 x 21 mm - Open Type, Grooved, Normal Clearance

The 6307N RICH Single Row Deep Groove Ball Bearing is a high-performance component measuring 35 x 80 x 21 mm. This bearing is expertly designed for a wide range of applications requiring smooth and efficient rotational motion with good radial and axial load capacity. Manufactured in China by RICH, it features a robust steel cage and is supplied with no sealing (open type), making it suitable for applications where lubrication is constantly supplied or contamination is minimal.

A key feature of this deep groove ball bearing 6307N is the presence of a groove on the outer ring. This groove allows for axial location of the bearing in the housing when used with a snap ring (though the snap ring itself is not included with this bearing), simplifying mounting and assembly, and potentially reducing the need for additional components. It has a 35 mm inner diameter, 80 mm outer diameter, and a 21 mm width. The CN (normal) internal clearance makes it suitable for most general applications.

Weighing just 0.42 kg, this 6307N RICH bearing provides a reliable and cost-effective solution for ensuring consistent performance and long-term durability in operational conditions where its open design and outer ring groove are beneficial.

Key Specifications:

• Type: Single Row Deep Groove Ball Bearing
• Model: 6307N
• Application: General industrial use, machinery where lubrication is present or minimal contamination
• Dimensions: 35 mm inner diameter x 80 mm outer diameter x 21 mm width
• Sealing: None (Open)
• Outer Ring Feature: Groove (for snap ring, snap ring not included)
• Clearance: CN - Normal Clearance
• Cage Material: Steel
• Weight: 0.42 kg
• Country of Origin: China
• Brand: RICH

Key Advantages:

• Versatile Performance: Suitable for applications with both radial and moderate axial loads.
• Axial Location Capability: Outer ring groove allows for axial positioning with a snap ring.
• Normal Clearance (CN): Ideal for standard operating conditions.
• Durable Steel Cage: Ensures robust performance and extended reliability.
• Cost-Effective Reliability: Provides trusted RICH quality for consistent performance.
• Easy Relubrication/Inspection: Open design facilitates maintenance.
