16036 M C3 RICH 180x280x31 16036MC3 RICH

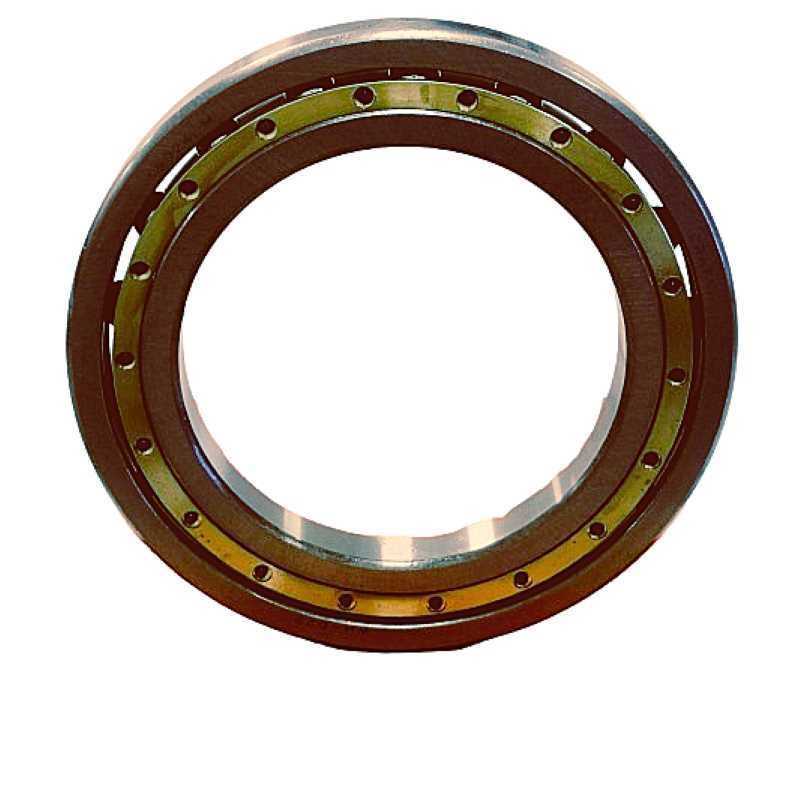

16036 M C3 RICH 180x280x31

Type: Deep Groove Ball Bearing
Model: 16036 M C3 RICH
Dimensions: 180 x 280 x 31 mm
Cage: Brass
Brand: RICH
Origin: China
RICH
16036MC3
€89.98
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

16036 M C3 RICH Single Row Deep Groove Ball Bearing - 180 x 280 x 31 mm

Technical Specifications:

  • Catalog Code: 16036 M C3 RICH
  • Brand: RICH
  • Type: Single row deep groove ball bearing
  • Bore Diameter (d): 180 mm
  • Outer Diameter (D): 280 mm
  • Width (B): 31 mm
  • Cage Material: Brass, guided by the rolling elements
  • Internal Clearance: C3 (Greater than Normal)
  • Sealing: Open (None)
  • Weight: 6.948 kg
  • Country of Origin: China

Key Performance Advantages:

  • Thin-Section Design: With a width of only 31 mm for a large 180 mm bore, this 160-series bearing is ideal for applications with limited axial space that still require high radial load support.
  • Machined Brass Cage: The brass cage provides exceptional durability and structural integrity, specifically engineered to withstand high vibration and harsh industrial environments better than standard steel cages.
  • C3 Internal Clearance: Features increased radial clearance to accommodate thermal expansion during high-speed operation or in high-temperature settings, preventing overheating and premature failure.
  • High Speed & Low Friction: Precision-ground raceways combined with a guided brass cage ensure smooth rotation and reduced energy consumption at high rotational speeds.

Transparency Note: This product is manufactured under the RICH brand. The code 16036 M C3 is used for identification purposes and does not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
180
Outer Diameter
280
Width
31
Cage
Brass
Clearance
C3 (Greater than Normal)
Category
Single Row Deep Groove Ball Bearing
