61836-2RS RICH 180x225x22

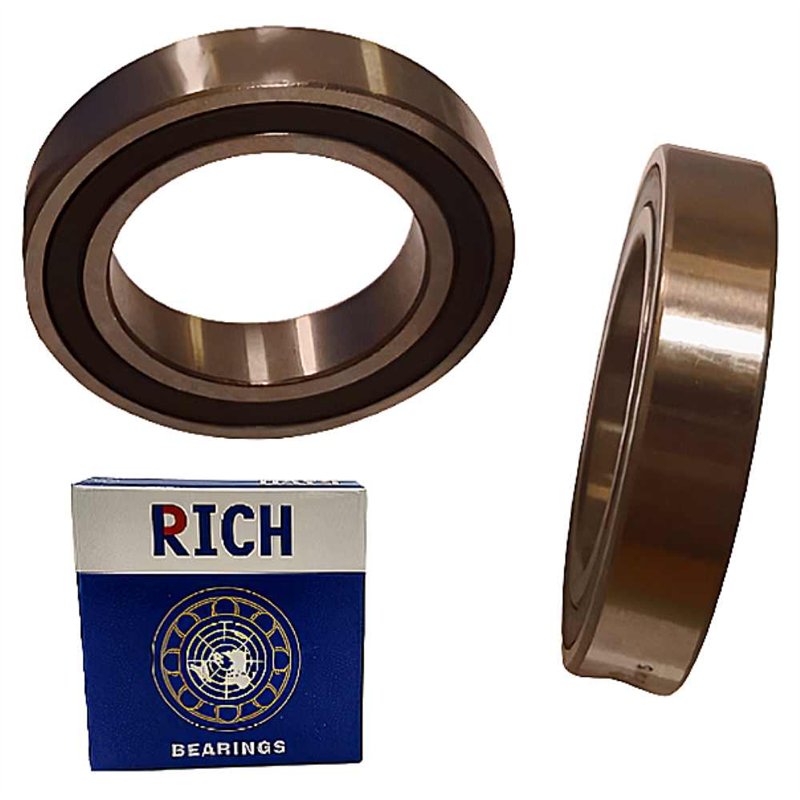

61836-2RS RICH – Deep Groove Ball Bearing – 180 × 225 × 22 mm

Technical Specifications:

• Type: Single row deep groove ball bearing (Radial ball bearing)
• Brand: RICH
• Model Designation: 61836-2RS
• Inner Diameter (d): 180 mm
• Outer Diameter (D): 225 mm
• Width (B): 22 mm
• Sealing: Double-sided rubber contact seals (2RS)
• Internal Clearance: CN (Normal clearance)
• Weight: 1.7 kg
• Country of Origin: China

Construction Features:

• Thin-Section Design: Part of the 618 (68) series, this bearing features an extremely low cross-section-to-bore ratio, ideal for applications with severe radial space constraints.
• Advanced Sealing: Integrated 2RS contact rubber seals provide superior protection against ingress of moisture, dust, and other contaminants while retaining grease.
• Operational Stability: High-precision raceways ensure smooth radial load distribution and consistent performance even at high rotational speeds.
• Ready for Installation: Pre-lubricated for life with high-quality grease, requiring zero maintenance under standard operating conditions.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are provided solely for identification and do not imply affiliation with other manufacturers.
