SS 61804-2RS RICH 20x32x7

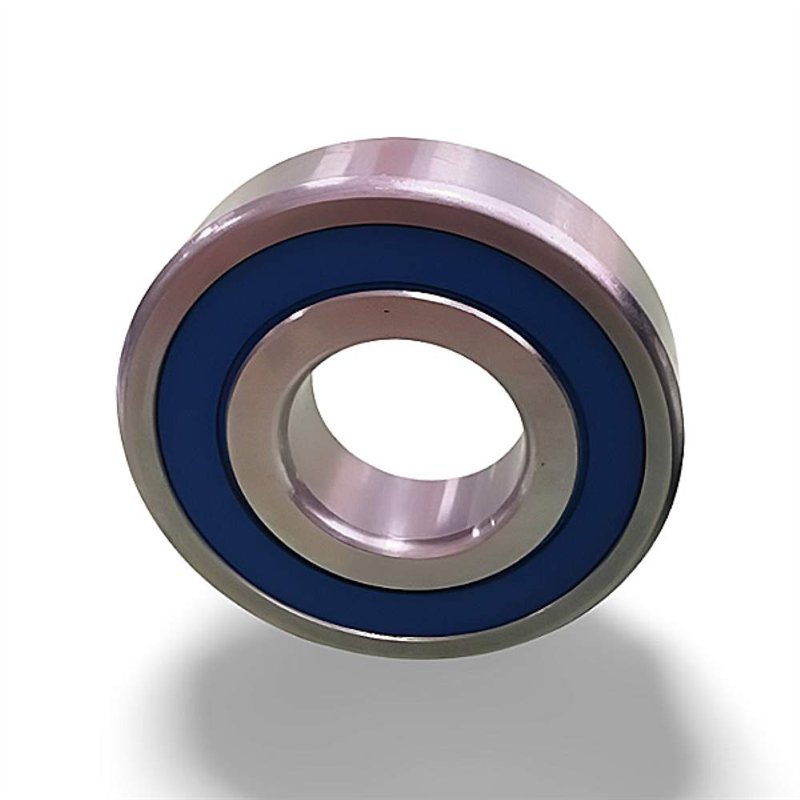

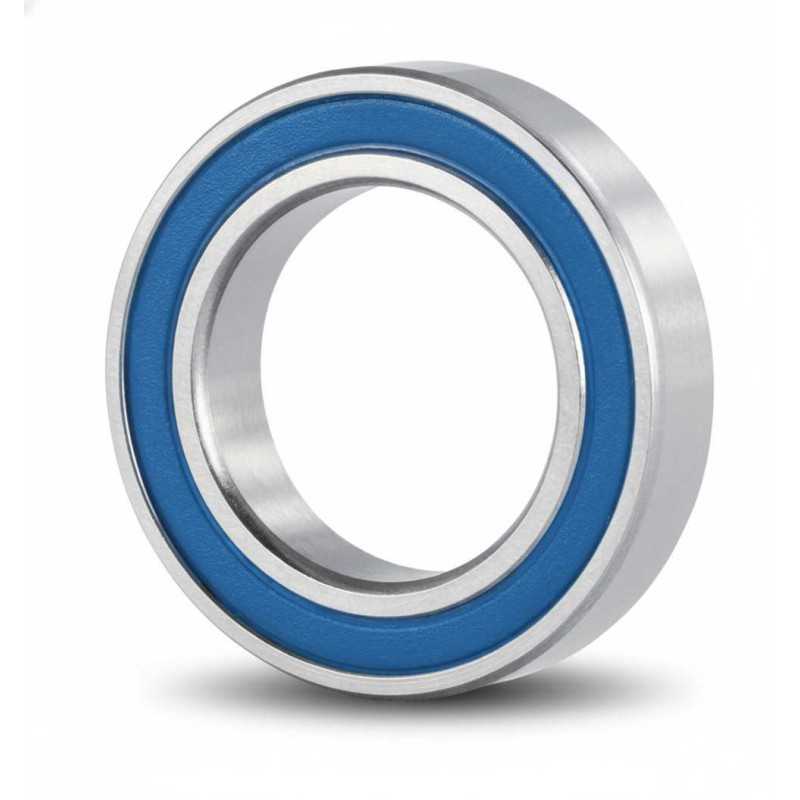

SS 61804-2RS (SS 6804-2RS) RICH – Stainless Steel Ball Bearing – 20 × 32 × 7 mm

Technical Specifications:

• Type: Single row deep groove ball bearing
• Brand: RICH
• Model Designation: SS 61804-2RS / SS 6804-2RS
• Inner Diameter (d): 20 mm
• Outer Diameter (D): 32 mm
• Width (B): 7 mm
• Material: Stainless Steel
• Sealing: Double-sided rubber contact seals (2RS)
• Internal Clearance: CN (Normal clearance)
• Weight: 0.018 kg
• Country of Origin: China

Construction Features:

• Corrosion Resistance: Fully manufactured from high-quality stainless steel, making this bearing an ideal choice for humid, corrosive, or food-grade environments.
• Thin-Section Geometry: Designed with the 618 (68) series profile, offering an extremely low weight and compact 7 mm width for space-critical assemblies.
• Hermetic Sealing: The 2RS contact seals effectively retain internal lubricant while providing a robust shield against external liquid and particulate contaminants.
• Ready for Service: Maintenance-free operation ensured by factory-applied grease and precision-ground raceways that minimize friction and noise.

Transparency Note: This bearing is manufactured under the RICH brand. Any OE or interchangeable references are used solely for identification and do not imply affiliation with other manufacturers.
