MGN09C-Z1-HM RICH 9x20x28,9

Experience precision and reliability with the MGN09C-Z1-HM RICH linear ball bearing, crafted from stainless steel for durability and resistance.

RICH
MGN09C-Z1-HM
€13.74
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

Rating:
(0)

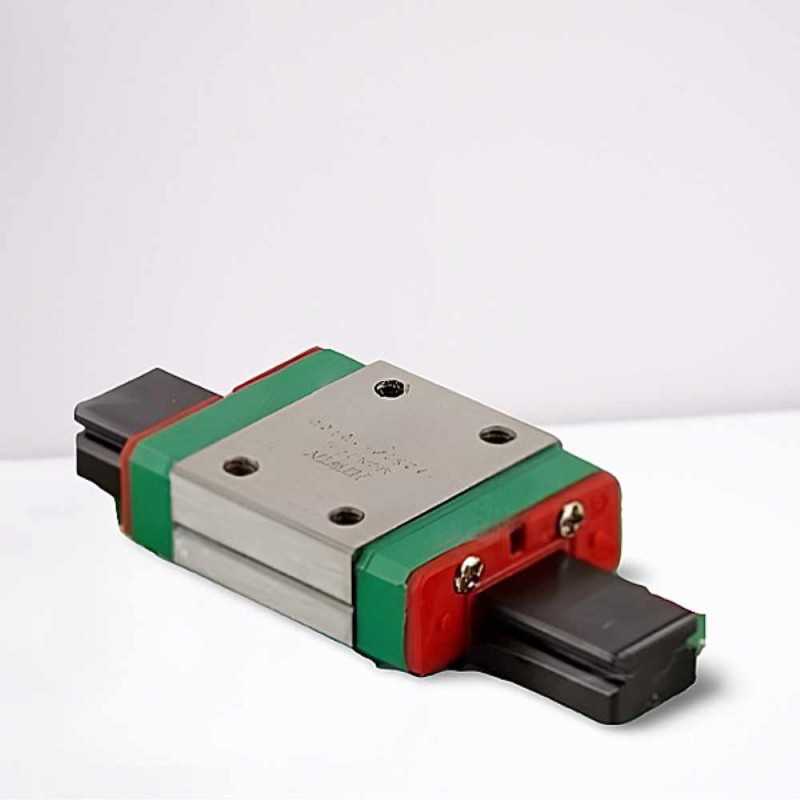

MGN09C-Z1-HM RICH Linear Recirculating Ball Bearing - Stainless Steel - 9 x 28.9 x 10 mm

Technical Specifications:

  • Bearing Type: Linear Recirculating Ball Bearing, Stainless Steel
  • Model Designation: MGN09C-Z1-HM
  • Brand: RICH
  • Dimensions: 9 x 28.9 x 10 mm
  • Width (F2): 9 mm
  • Length (L): 28.9 mm
  • Height (K): 10 mm
  • Weight: 0.022 kg
  • Precision: High precision
  • Preload: Medium preload
  • Cage: None
  • Rail Size: 9 mm
  • Mounting Dimensions (F2): 10 mm
  • Mounting Dimensions (J): 15 mm
  • Mounting Dimensions (L2): 20 mm
  • Country of Origin: China

The MGN09C-Z1-HM RICH bearing is meticulously engineered to deliver exceptional performance in high-precision linear motion systems. Its stainless steel construction provides superior corrosion resistance, making it perfect for demanding environments where hygiene and moisture pose a challenge. Designed with a medium preload, this bearing offers remarkable stability and minimizes deflection under load, ensuring optimal linear movement along a 9 mm rail. With a cage-free architecture, it promises seamless and continuous ball movement, maintaining precise positioning even in intricate or rapid operations. Experience the blend of reliability and efficiency with RICH's advanced bearing technology.

Key Performance Advantages:

  • Stainless Steel Construction: Provides superior corrosion resistance, ideal for challenging environments.
  • Medium Preload: Offers remarkable stability and minimizes deflection under load.
  • High Precision: Ensures optimal accuracy for intricate and rapid operations.
  • RICH Quality: A dependable and robust component for reliable operation.
  • Cage-Free Architecture: Promises seamless and continuous ball movement.

Data sheet

Inner Diameter
9
Outer Diameter
20
Width
28,9
