KB 3068 PP RICH 30x47x68 KB3068PP RICH
zoom_out_map
KB 3068 PP RICH 30x47x68 KB3068PP RICH

KB 3068 PP RICH 30x47x68

Type: Linear Ball Bearing
Model: KB 3068 PP RICH
Dimensions: 30 x 47 x 68 mm
Sealing: Single-lip seal
Cage: Polyamide
Application: Universal Linear Guidance
Brand: RICH
Origin: China
RICH
KB3068PP
€3.76
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

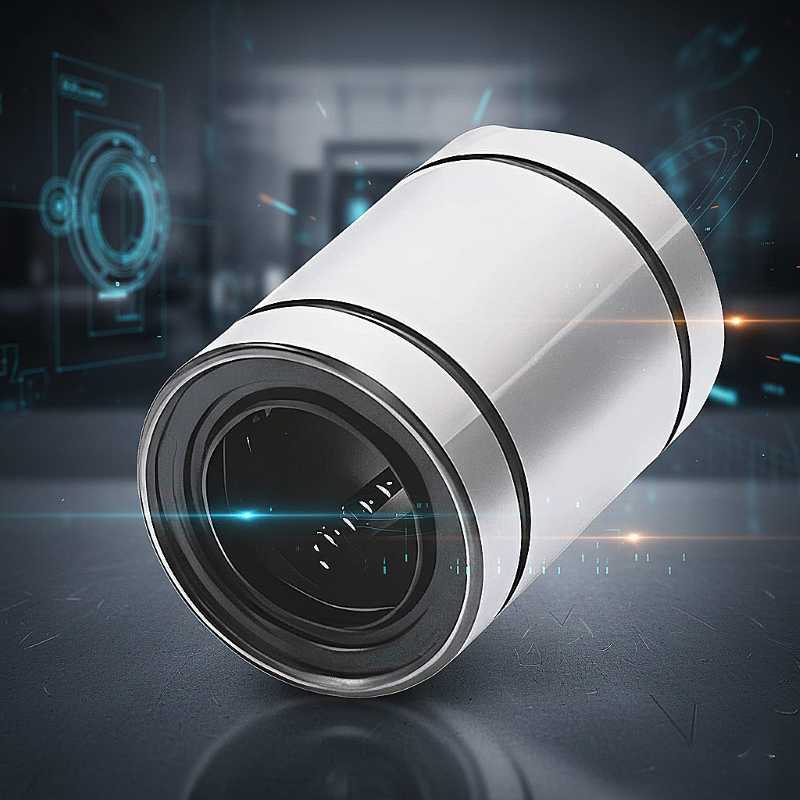

KB 3068 PP RICH Linear Ball Bearing - 30 x 47 x 68 mm

Technical Specifications:

  • Catalog Code: KB 3068 PP RICH
  • Brand: RICH
  • Type: Linear ball bearing
  • Bore Diameter (d): 30 mm
  • Outer Diameter (D): 47 mm
  • Length (L): 68 mm
  • Cage: Polyamide
  • Sealing: Single-lip seal
  • Weight: 0.32 kg
  • Country of Origin: China

Product Overview:

The KB 3068 PP RICH is a high-performance linear ball bearing engineered for smooth and precise translational movement along 30 mm hardened shafts. This component is specifically designed for integration into heavy-duty industrial machinery, robotics, and automated systems worldwide. The internal structure features multiple rows of recirculating steel balls guided by a high-grade polyamide cage, which ensures exceptional stability, low friction, and significantly reduced operational noise during high-speed travel. To maintain peak performance in demanding industrial environments, the bearing is equipped with a single-lip seal that protects the internal raceways from dust and debris while ensuring efficient lubricant retention. Its compact, non-flanged cylindrical design makes it a reliable choice for standard linear housings or custom mechanical configurations requiring accurate and durable linear guidance.

Key Performance Advantages:

  • Universal Compatibility: Manufactured to consistent technical tolerances for seamless integration into diverse automation platforms.
  • Robust Polyamide Cage: Provides superior vibration damping and maintains structural integrity under medium to heavy radial loads.
  • Efficient Sealing Protection: The integrated single-lip seal acts as a barrier against environmental contaminants to maximize service life.
  • High-Precision Motion: Recirculating ball technology delivers fluid linear movement with minimal energy loss and mechanical wear.

Transparency Note: This bearing is manufactured under the RICH brand. The code KB 3068 PP is used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
30
Outer Diameter
47
Width
68
Category
Linear Ball Bearing
