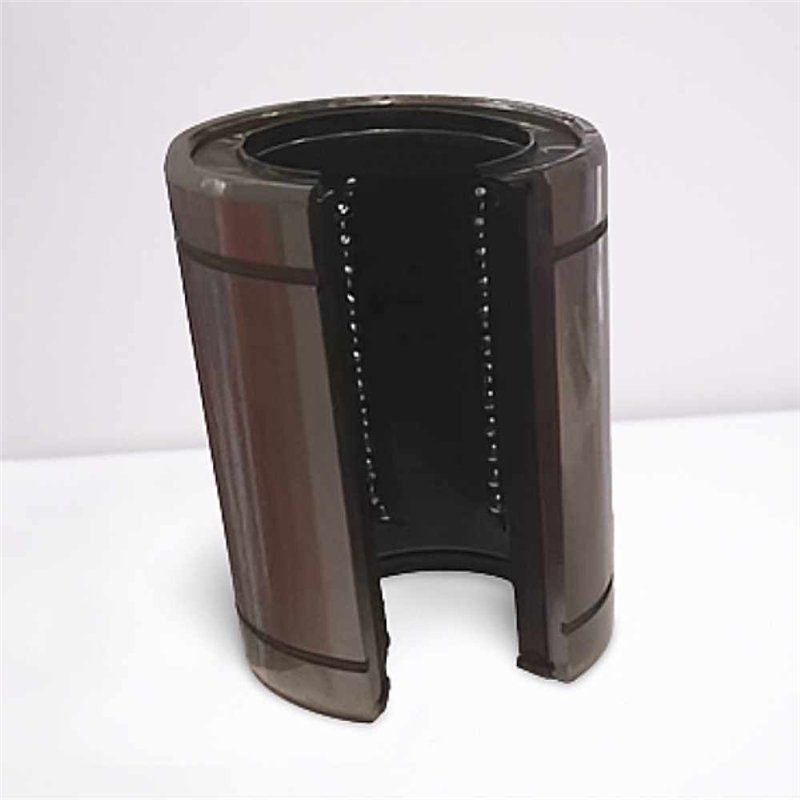

KBO 2045 PP RICH 20x32x45 KBO2045PP RICH
zoom_out_map
KBO 2045 PP RICH 20x32x45 KBO2045PP RICH

KBO 2045 PP RICH 20x32x45

Type: Linear Ball Bearing (Open Type)
Model: KBO 2045 PP RICH
Dimensions: 20 x 32 x 45 mm
Sealing: Single-lip seal
Design: Open longitudinal section for supported shafts
Brand: RICH
Origin: China
RICH
KBO2045PP
€4.26
No tax
Quantity
🏠 The Product Is In Our Warehouse And Will Arrive At Your Shipping Address Within 7–10 Business Days.

KBO 2045 PP RICH Linear Ball Bearing - 20 x 32 x 45 mm

Technical Specifications:

  • Catalog Code: KBO 2045 PP RICH
  • Brand: RICH
  • Type: Linear ball bearing (Open configuration)
  • Bore Diameter (d): 20 mm
  • Outer Diameter (D): 32 mm
  • Length (L): 45 mm
  • Cage: Plastic
  • Sealing: Single-lip seal
  • Weight: 0.08 kg
  • Country of Origin: China

Product Overview:

The KBO 2045 PP RICH is a high-precision linear ball bearing featuring an open longitudinal section specifically designed for use with supported shafts. This open-type configuration is essential for long-stroke industrial applications where continuous shaft supports are required to prevent deflection under heavy loads. The internal mechanism utilizes a high-quality plastic cage to guide recirculating steel balls, ensuring smooth, low-friction translational movement along 20 mm shafts. Equipped with a single-lip seal, the bearing maintains excellent lubricant retention while protecting the precision internal raceways from dust and debris. Its specialized geometry makes it a critical component for high-stability automation, robotics, and large-scale CNC machinery, providing a reliable solution for universal linear guidance across global mechanical platforms.

Key Performance Advantages:

  • Open Geometry: Specifically engineered to operate on supported rail systems for maximum shaft stability.
  • High Load Capacity: Designed for 20 mm shafts, offering a robust solution for medium-to-heavy automated tasks.
  • Debris Protection: The single-lip seal provides an effective barrier against environmental contaminants.
  • Fluid Motion: Advanced recirculating ball technology delivers high positional accuracy and quiet operation.

Transparency Note: This bearing is manufactured under the RICH brand. The code KBO 2045 PP is used solely for identification and do not imply affiliation with other manufacturers.

Data sheet

Inner Diameter
20
Outer Diameter
32
Width
45
Category
Linear Ball Bearing
