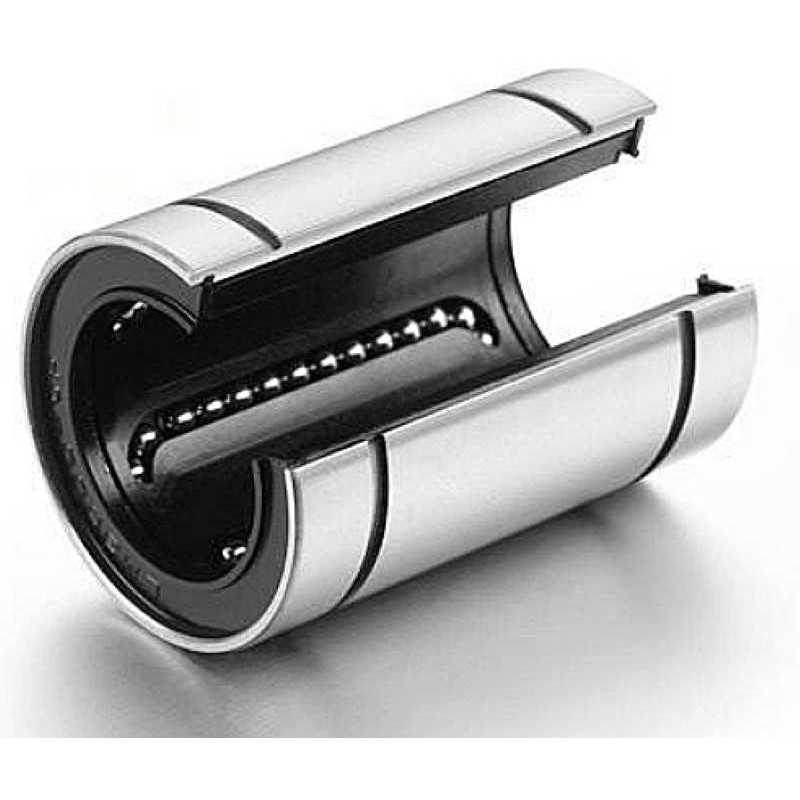

LM20UU-OP RICH Open Type Linear Ball Bearing - 20 x 32 x 42 mm
Technical Specifications:
- Catalog Code: LM20UU-OP RICH
- Brand: RICH
- Type: Linear ball bearing - Open Type
- Shaft Diameter (d): 20 mm
- Outer Diameter (D): 32 mm
- Length (L): 42 mm
- Standard: JIS
- Cage Material: Polyamide
- Sealing: UU (Double-sided single-lip seals)
- Weight: 0.074 kg
- Country of Origin: China
Key Performance Advantages:
- Open Type (OP) Design: Specially engineered with a side opening to allow travel over supported shafts (shafts mounted on continuous rails). This configuration is essential for long-stroke systems where shaft deflection must be prevented.
- Optimized 20 mm Bore: Provides a balanced ratio between size and load capacity, making it a standard choice for medium-duty CNC routers and automation lines.
- Polyamide Cage: Features a high-quality resin cage that reduces friction, noise, and vibration during high-speed linear travel.
- Integrated UU Seals: Equipped with protective rubber seals on both ends. These seals are notched to match the open profile, ensuring that dust is excluded and lubricant is retained within the ball circuits.
Transparency Note: This product is manufactured under the RICH brand. The code LM20UU-OP is used for identification purposes and does not imply affiliation with other manufacturers.
